Single hung balancer

A contractor from sothern California, Orange county says:
I am trying to order 4 Balancer for my 2 sets of window.
Length of channel itself is 29" and overall section including both ends hardware is 30" and width is about 9/16 of an inch.
ID number on the channel is 2820G.

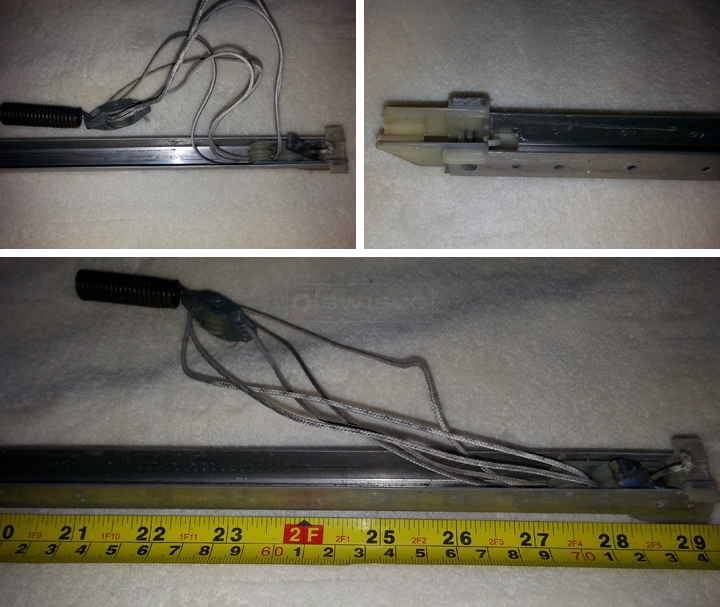

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Hey, thanks for posting. I've narrowed this down to two possible channel balance Series: either our Series 380 or our Series 385 balances.

Now, as you can see, there is only one difference between these two Series, and that is their bottom shoe. The Series 380 uses the 15-005 while the Series 385 uses the 15-004. I can't quite tell what you have based on your pictures, though. Please carefully compare their dimensions to your own hardware and see which is a better match.
15-004 and 15-005
A contractor from Southern California, Orange County says:
I think I got it and will be series 380
I am ready to order.
