Sliding glass door handle part including pictures

A home owner from Somers Point, Nj says:
Hello - Sending three photos of part required for sliding glass door.
The length of the wooden handle is 11".
The holes that affix the wooden handle to the metal bracket are 6" from center.
The holes that affix the handle to the holes in the door are 5" apart.
Markings on the locking mechanism: Canadian Patent No. 919213 patented in 1973. Additional Patent No. on the locking mechanism is 3596,954.

Appreciate your assistance in providing this part.

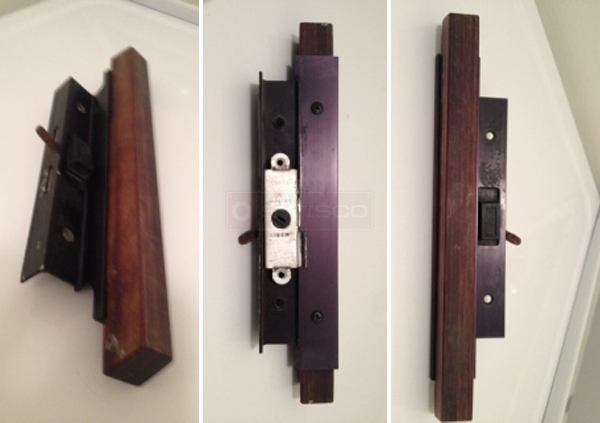

User submitted photo of their door handle.
Profile picture of Paul
Paul from SWISCO responded:
Our 82-005 is similar, and has the same hole spacing, but the overall length of the pull is not as long as yours. If your handle is fine, you could consider just replacing the interior latch with our 82-225. What do you think?
A home owner from Somers Point, New Jersey says:

Appreciate the response. The handle is fine yet the interior mechanism specifially the plistic parts are cracked or broken. I would also prefer to relace the exterior handle which has a lock,
withkey. Does your 82-005 have the exterior handle available?
Profile picture of Dave
Dave from SWISCO responded:
Sure, our 82-005 handle set can work with the 82-306 exterior keyed pull. You can simply swap out the plate that comes with the 82-005 with the 82-306 pull. Would that work for you?
