Sliding glass door replacement wheels

A home owner from Oregon says:

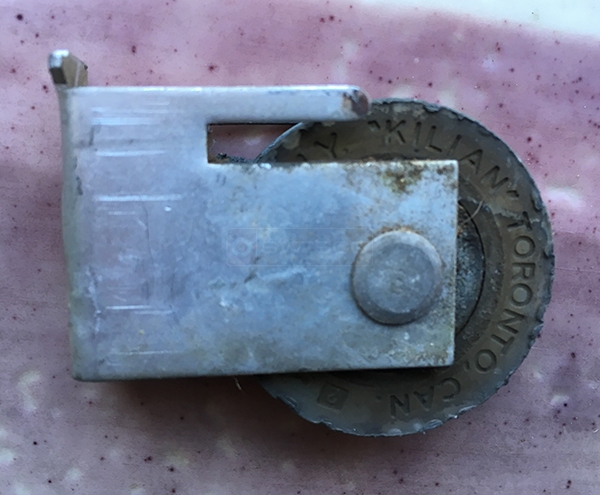

No part number, wheel stamped with 'KILIAN', 'TORONTO CAN', 'SYRACUSE NY'.

Door probably installed mid-1960's
User submitted a photo of a patio door roller.
Profile picture of Dave
Dave from SWISCO responded:
I'm pretty sure we can help, but the part in your picture is only the inside portion of a larger roller assembly. There should be an outer housing, probably still installed in your door. If you can show us the complete roller assembly, we can recommend a match.
A professional from CA says:
81-258 is the newer replacement for this old roller. The corner bracket must be replaced along with this wheel.
A home owner from Oregon says:

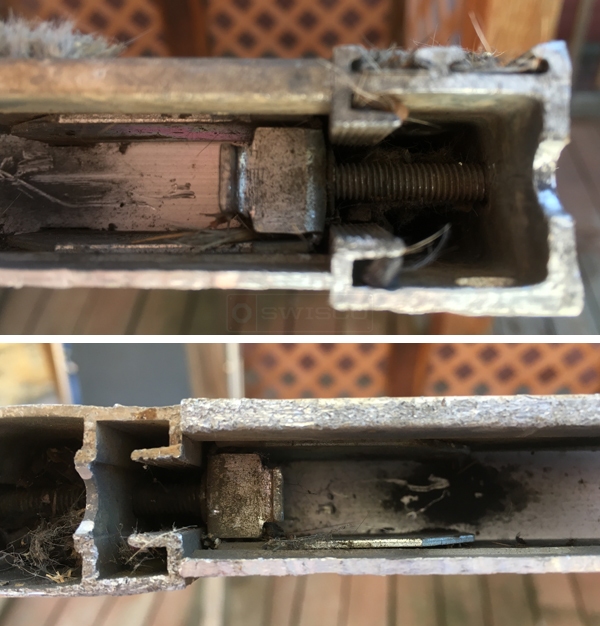

Here are a couple of pictures of the bottom of the frame. It doesn't look like anything else can be removed, or does the tab pull out?
Thanks,

Tycho
User submitted photos of patio door hardware.
Profile picture of Dave
Dave from SWISCO responded:
It's hard to tell based on this picture. Many important details are still obscured. We believe the 81-258 may be the replacement roller you want, but the only way to confirm is to remove yours from the door and see if they match up.
A professional from CA says:
The corner tilts out just like the new style. The bottom screw and the tabs on the bottom lock it in place. You may find it easier if you remove the bottom rail.
A home owner from Oregon says:
Thanks, Dave.

I'm going to order those wheels. If they don't fit maybe that'll convince me to finally get a new door that has somewhat better insulation properties for our 0
A professional from CA says:
I personally guarantee it will work.
If it doesn't I'll fix it for free.
I'll only charge time and mileage. California to Oregon, can't be that far. ;) Only 22 hours or so round trip.
