Sliding glass door rollers

A quick learner from USA says:
I have a patio aluminum sliding glass door that I replaced the rollers about a year and a half ago and not the are making a grinding noise,it slides easy it just doesn't sound right. I have a 2006 manufactured home it is a Palm Harbor model and I think the door is a Kinro. The roller I have are some I bought at Home Depot, they are the same size as your Acorn door roller, the ones I have are single roller. Can I use the double roller to replace the single ones? Also should get the 6ft. door track cover,the small one. I am enclosing pictures of my rollers and track. Hope these will help
Thank you for your help,

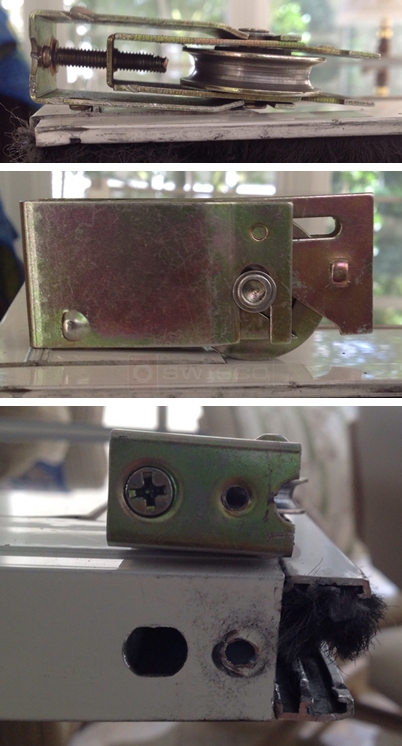

User submitted photo of their door roller.
Profile picture of Tom
Tom from SWISCO responded:
I think we can help, yes. Before I can recommend anything, though, could you give me more information on the roller? Specifically, I'd like to know the height and thickness of the roller housing. I would also like to see a picture that shows it from behind, where the screw sticks out. Thanks!
A quick learner from USA says:
Hi Tom,
The housing unit is the same as your Acorn roller, 3 1/8" long, 3/4" wide and 1 1/8" high and the rollers are 1 1/4" in diameter. The door is back on and it is a tough job to get it off. If you really need the picture I will try to take it off this weekend.I hope this helps.
Thank you for the help.
Thomas Rich
Profile picture of Tom
Tom from SWISCO responded:
Are you referring to our 81-030 tandem roller? If so, I don't think that will work for you. The style is too different, and it appears the set screw and installation hole are in different positions. The set screw for the 81-030 is on the bottom and its installation hole is on the top, while yours seems switched. That said, I cannot be certain of that last part because I cannot see the rear of your roller. I'm afraid I will need these details before I can make a better recommendation.
A quick learner from Zephyrhills, Fl. says:
Ok Tom I will get more pictures for you as soon as I can. Thanks again.

Tom Rich
A quick learner from Zephyrhills, Fl. says:
Hi Tom,
Sorry it took so long to get back to you, I have been busy with other projects. I am sending you more pictures and measurements, hope this will be good information for you. 3" long 1 1/8 " high and 3/4 " wide. Let me know if you need more info. Thank you for all your help.
Tom Rich
User submitted photo of their door hardware.
Profile picture of Dave
Dave from SWISCO responded:
Thanks for your patience. I'm afraid we do not have a double wheel assembly that could replace this. The closest match we have is our 81-081. Could you use that as a replacement?
A quick learner from Zephyrhills, Fl. says:
I will order a set and see if they solve the problem. If this doesn't work I will try something else. Thank you for all your help.
Tom
