Slimfold Model "E" Metal Bifold Door Pin and Cap

A quick learner from Florida says:

February 15, 2016

I have several Slimfold Model "E" bifold doors that need replacement parts. The specific parts are the pivot pins and plastic caps. The doors should be from around 1985. The pins are 3/16" diameter on the end cap end, 1/4" pin diameter, and 6 3/8" long. What part numbers do I need for replacement? The pins, sleeves, and springs are in good condition. Can I just replace the end caps? If so, is it just a simple matter of removing the old end caps and snapping the new ones on the existing pins? Thanks

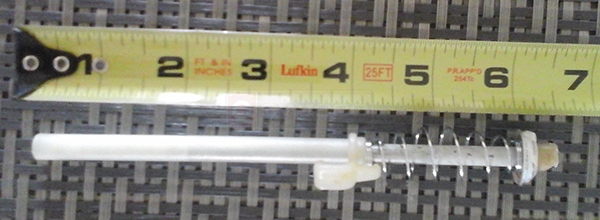

User submitted a photo of a bi-fold door pivot pin.

Paul from SWISCO responded:

February 16, 2016

Your Slimfold guide pin resembles our 21-007. If you just want the cap by itself, see our 21-105 instead. You would knock off the old cap and tap on the new cap. What do you think?

Bifold Door Guide Pin

21-007

$3.87

Bi-fold Door Pivot Assembly

How to Install Bi-Fold Closet Door Pins
