Slumberland Chesser

A quick learner from MN says:
I need to get a replacement part for my chesser drawer that I got from Slumberland in 2004. It is a Praire Mission chest and the number is 990-004. Can you help me get the correct part. The part is the glider that moves on the under part of the drawer.
Thank you
Mona

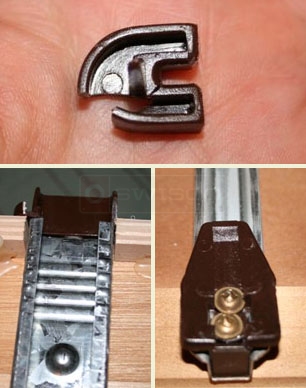

Customer image of their Slumberland Chesser drawer parts
Profile picture of Paul Sr.
Paul Sr. from SWISCO responded:
Your Slumberland Chesser drawer parts look a lot like the Kenlin Rite-Trak drawer system parts. Compare your parts to the 32-081 drawer socket and the 32-076 drawer runner. Is that top picture a piece that broke off of the drawer socket (the piece on the bottom left picture)?
A quick learner says:
Yes - that is correct. 32-076 looks like it could possibly be the one but I'm not sure. Should I just order it to see or would you like to see a picture of the other piece I found that goes with it? Thanks Paul!
A quick learner says:
actually maybe it is the first picture...32-081
Profile picture of Paul Sr.
Paul Sr. from SWISCO responded:
The piece on the bottom left looks like the 32-081 and the piece on the bottom right looks like the 32-076. Since you have the actual parts in front of you I would encourage you to compare your hardware to the product pictures of the 32-081 and 32-076. Feel free if you want to send more pictures for us to look at.
A quick learner says:
Okay - and both those pieces are intact. so do you have a picture of the piece that would slide back and forth as the drawer opens and closes? that is the piece that is broken which is the top picture. the other two pictures on the bottom - those are completely fine and don't need repair. Sorry it's really had to email back and forth sometimes for me.
Profile picture of Donna
Donna from SWISCO responded:
I was under the impression these were the only needed plastic components as shown in the following Kenlin Demo View link.
A quick learner says:
No - sorry, my fault...the piece I need is the one that is in my hand. I was just showing you the dressing parts so you could see that as well. The part that I need is the part that fits in-between the base of the drawer and the drawer itself. It's the piece that slides the drawer back and forth. Does that make sense?
Profile picture of Dave
Dave from SWISCO responded:

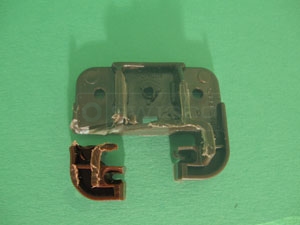

I grinded and cut down a piece off of our 31-081
Image of a broken 32-081 Kenlin drawer socket.
Trying to replicate your drawer part picture.
A small piece of a broken Kenlin drawer socket.
But it still doesn't match. I'm really not sure what your part looks like by only going by that piece in your hand.
A quick learner says:
okay, so the demo view looks exactly like what I have. So you're saying that my piece - how it is now doesn't fit into your demo view? I will take a picture of the other piece that I found to see if that helps. Sorry this is taking so long. It actually looks pretty good to me. It really doesn't cost that much. Do you think I should just order a part that goes with the demo view and give it a try?
Profile picture of Paul Sr.
Paul Sr. from SWISCO responded:
We just are not sure where that little piece came from. It looks like it might have broken off of the 32-081 Kenlin socket - but you said earlier that the little piece did not break off of the socket or the runner. So I am just confused on where did it come from. If it is not part of the socket or the runner... it would be a separate third part of your drawer system that is unfamiliar to us. If possible, please send a different picture of this piece from another one of your drawers where it is not broken so we can see what it looks like.
A quick learner says:
Okay, now i'm tracking with you...maybe it did break off like what you show in the demo view. I was just thinking it was a whole separate piece but maybe not. Can I order the part that you think that it is?
A quick learner says:
As I look closer at the bottom of the drawer i can see that that is where it broke off. Do I need to get the entire metal piece that goes along the bottom of the drawer or can I just replace the plastic piece? thanks for all your help! You've been very patient with me.
Profile picture of Paul Sr.
Paul Sr. from SWISCO responded:
You can order the 32-081 socket and the 32-076 runner right online.
Profile picture of Paul Sr.
Paul Sr. from SWISCO responded:
We do not carry the metal tracks - so hopefully you can fix your drawer just by replacing the plastic drawer hardware. You will have to expect your tracks closely to see if they are damaged (most of the time they are not and replacing the plastic hardware is all that is needed).
A quick learner says:
So you are relatively sure that these are the parts that I need?
Profile picture of Donna
Donna from SWISCO responded:
Unless you have the "Rite Trak II" version this system they should work, go to the product pages for the 32-081 socket and the 32-076 runner, to view the actual products and dimensions.
A quick learner says:
okay thank you
