Something is missing

A handy person from Land O Lakes, FL says:

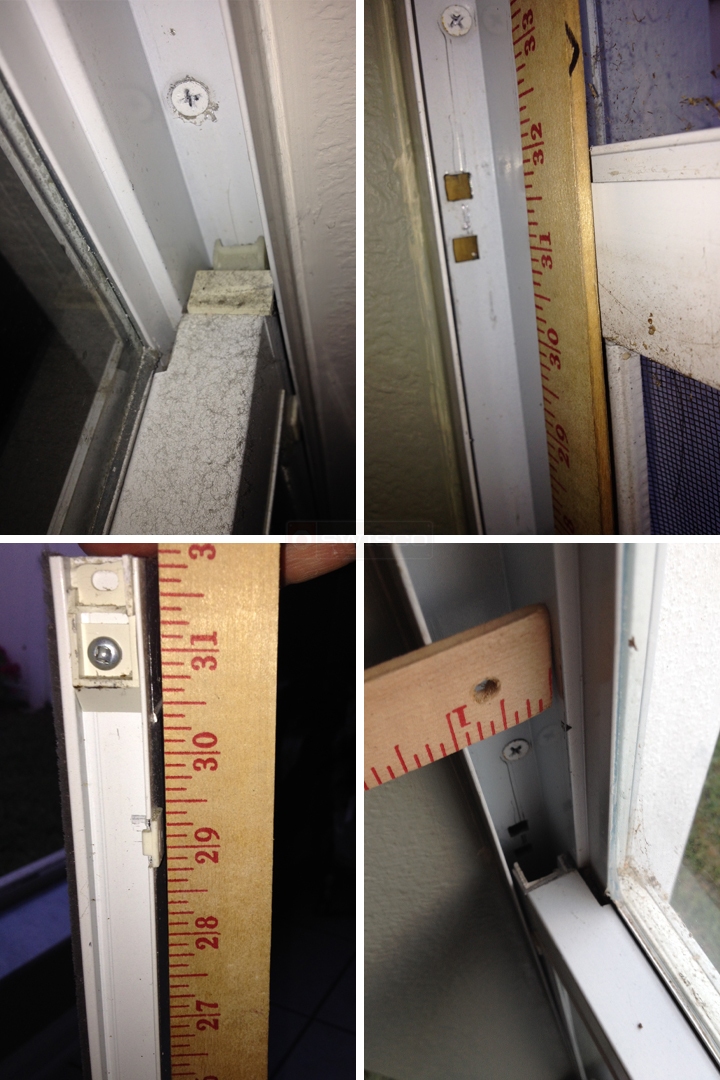

I have a window that has no rods to look at. I moved in and they were gone. Just a big heavy piece of glass. The lower/movable piece of glass can be removed from the frame rails/can move back and forth. I took 3 pictures. 1-3 are of the broken window. The 4th is of a similar window that works ok. I don't know if it had a spring or block & tackle. They are contractor grade windows so probably whatever is cheapest. A few of the pictures are taken with a yardstick. Let me know if you can help or need more measurements.
User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
Thank you for posting. It looks like your top sash guide is broken. I recommend our 18-166. This will keep the new balances in place once they're installed.

Now, if you agree that you have the 18-166, then I also recommend our Series 385 channel balance. I cannot guarantee that this is exactly what this window once had, but in my experience this is often used with our 18-166. Unfortunately, without the old balances, there is no way for me to know for sure what you have. That said, I think the Series 385 is a good place to start.

To determine the correct length and option, I will need you to remove the sash from the window. Then, I will need you to measure the height of the visible glass and then weigh the whole sash on a scale. Once you tell me the height of the visible glass and weight, we can work from there.

Check out the video below, as well. This will give you a good idea of how these balances operate.
A handy person from Land O Lakes, FL says:

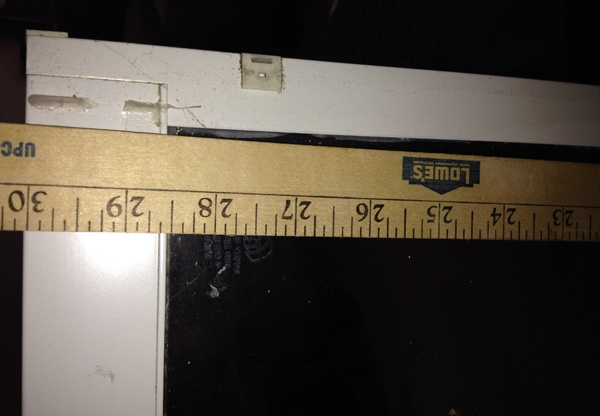

Thanks for your help. The sash weighs 28-29 lbs and the glass is 28 1/2 inches high, as shown. The video you posted looks like what i have, as it has those take-out clips. Feel free to point me in the right direction. Thanks,
User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
The balance might be a S385-28 channel balance with a stamp option of 2750. Again, however, I cannot guarantee that this is what you have. Based on the information provided, it is our best guess.
