Spiral Banace for tilt window

A handy person from Knoxville TN says:
February 14, 2016
Size 3/8 Yellow tip 25" tube length Window Weight 20 LB ( need 5 Pieces )
Also Need Pivot Shoes ( Need 3 Pieces ) / Window Latch ( Need 1 Each Of left and Right ) and pivot bar ( Need 2 Pieces )
Also sending pictures for this items


Thanks Vijay

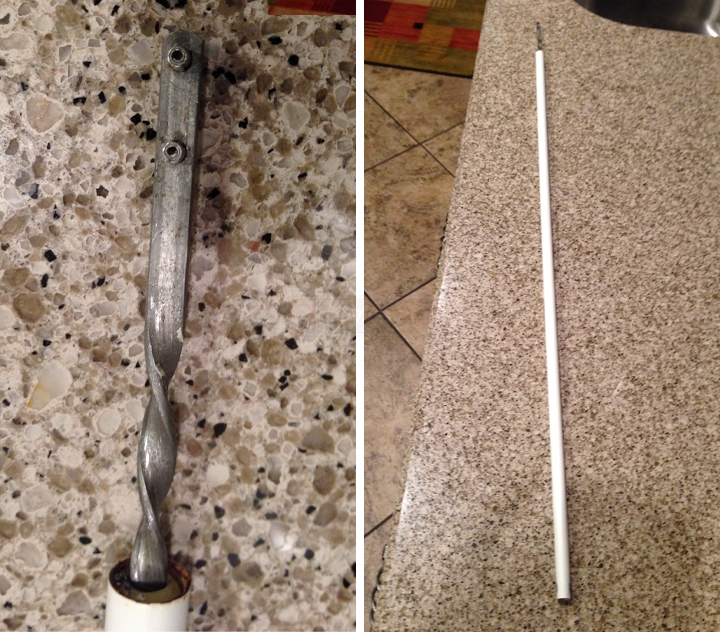

User submitted photos of a window balance.
A handy person from Knoxville TN says:
February 14, 2016
Additional Pics to Ref # D 64156

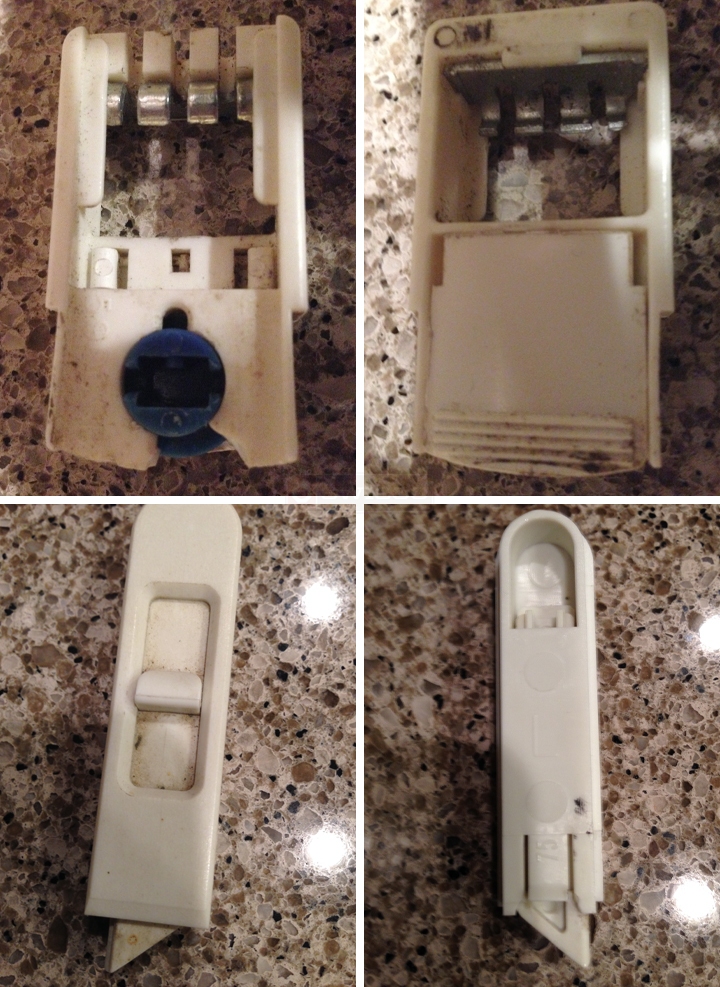

User submitted photos of window hardware.
A handy person from Knoxville TN says:
February 14, 2016
Additional Pics to Ref # D 64156

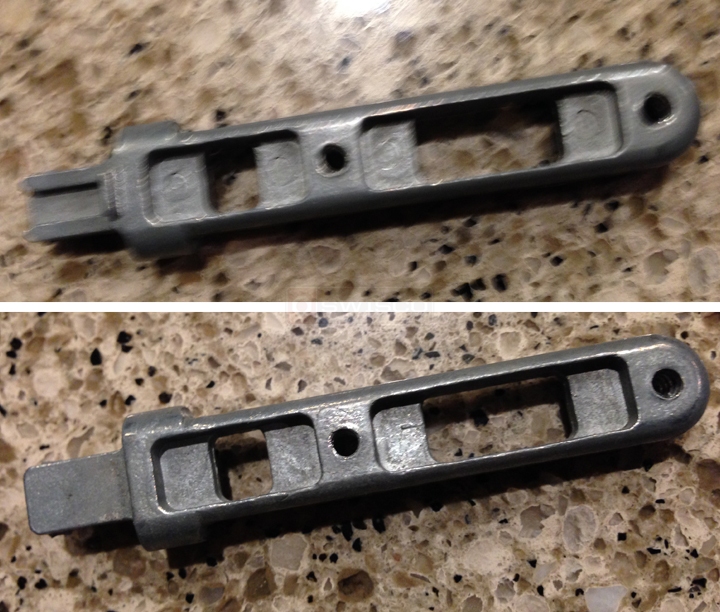

User submitted photos of a pivot bar.
Profile picture of Paul
Paul from SWISCO responded:
February 16, 2016
Thanks for posting. For the balance, see our S600-25. This has a metal tube, but should still work for you. I'd also recommend the Red Tip color tip option. For the pivot lock shoe, see our 15-219 and 26-366 pivot bar. For the white top tilt latches, see the 26-243 and 26-244. Please note that our latches square off at the back where yours is rounded. Ours will fit and cover the sash cut out. Please review and let me know what you think!
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
25" Series 600 Spiral Tilt Window Balance
25" Series 600 Spiral Tilt Window Balance
S600-25
$8.95
Pivot Shoe
Pivot Shoe
15-219
$3.47
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
Vinyl Window Sash Pivot Bar
Vinyl Window Sash Pivot Bar
26-366
$3.77
