Spiral balance tilt window latch

A quick learner from New Jersey says:
See photos. Need the left and right. Part is about 3" long, screw holes on 2" center. The finger hole is oval. The screws are offset away from the edge of the window.

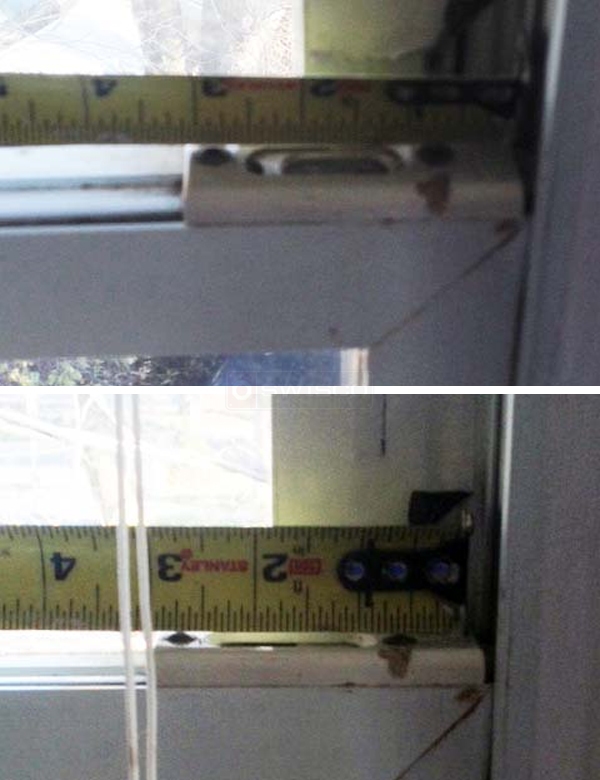

User submitted photos of a tilt latch.
Profile picture of Paul
Paul from SWISCO responded:
Can you confirm your dimensions, specifically the hole spacing? Based on these measurements, I believe you have something like our 26-120 and 26-121 top tilt latches. It's hard to tell based on the pictures, though.
A quick learner from swedesboro NJ says:
The screw hole spacing is 2 1/16". What PN's do I need?

Do you have the window lock assembly for this window?
Profile picture of Tom
Tom from SWISCO responded:
We do not have any latches with that kind of spacing. Make sure you're measuring from the center of each hole, not the edges. As for the lock, we would need to see a picture of that, along with the hole spacing. Thanks!
