Spiral balances

A quick learner from USA says:
April 11, 2016
Hi Folks
I have a single hung, wood sash of 21 lbs. Height of 28" . From long point of sill to bottom check rail of top sash is 27". Jamb height overall is 54" from long point of sill. Top sash height is 27". Bottom sash is plowed out for 5/8" spiral balances. Bottom sash seems comfortable opening a distance of 23" from closed position. Seems to be a home made window set up and there were never balances of any kind present. Sash is held up with stick presently.
What spiral balances do you recommend?

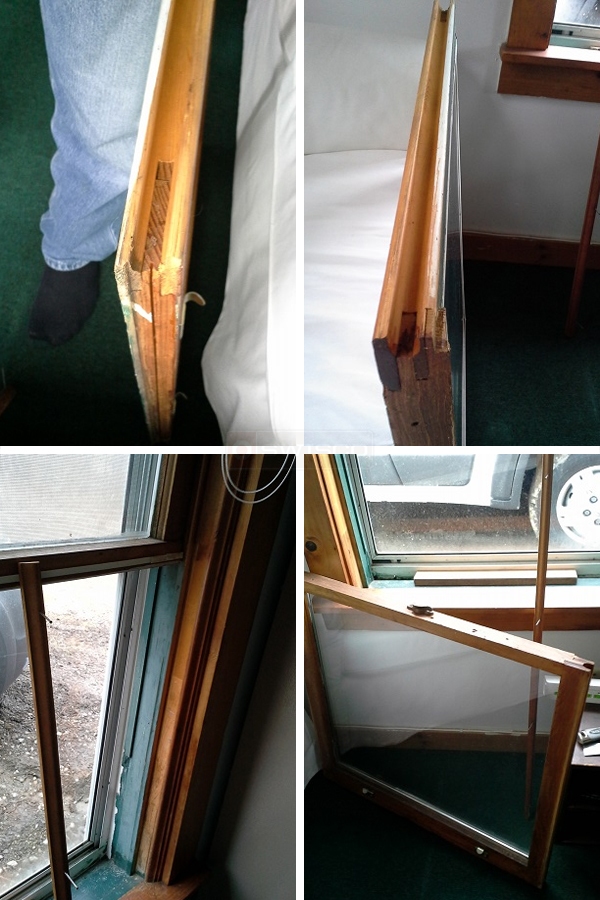

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
April 13, 2016
Hello! The spiral balance we recommend in this situation is our Series 500 . These have been used on wood windows like yours since the 50's. You would also need a bracket like our 17-012 to connect it to the bottom of the sash, and a charging tool like our 75-004 to give it the proper tension and to help install. See what you think!
A quick learner from Williamstown MA says:
April 17, 2016
Hi and Thankyou for your professional appraisal of my window sash needs. My final question is what would be the length of the 500 balance that I need to order?
Sincerely
Wayne
Profile picture of Paul
Paul from SWISCO responded:
April 19, 2016
Sure thing! Based on your sash size, I would go with 27".
27" Series 500 Spiral Balance
27" Series 500 Spiral Balance
S500-27
$9.42
Bracket, #32
Bracket, #32
17-012
$1.20
Wire Charging Tool for Non-tilt Windows
Wire Charging Tool for Non-tilt Windows
75-004
$2.55
#8 x 1" SS Installation Screw
#8 x 1" SS Installation Screw
33-016
$0.25
#8 x 1/2" Truss Head Stainless Steel Phillips Screw
#8 x 1/2" Truss Head Stainless Steel Phillips Screw
33-073
$0.23
