Spiral window balance

A home owner from Delta, Pa says:
Where can I get pivot lock shoe like this and a 30" spiral balance rod.

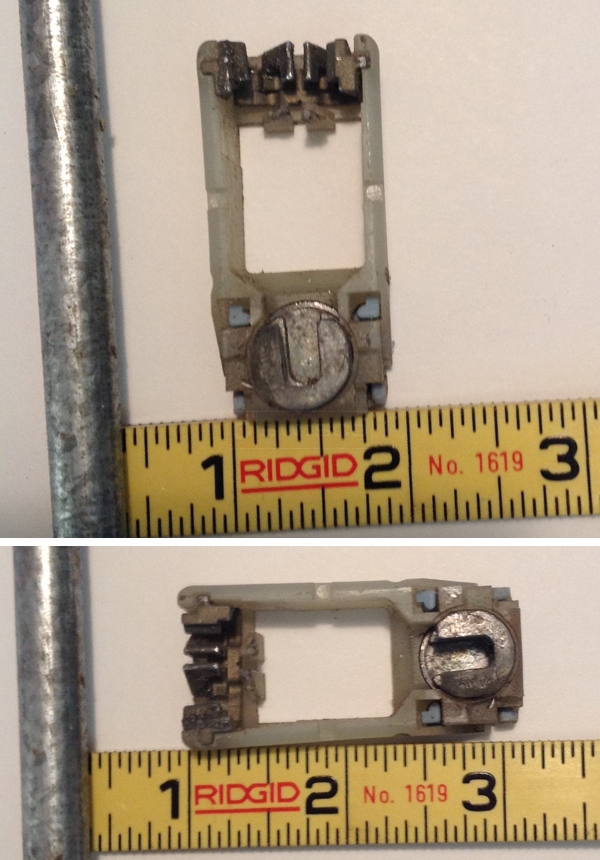

User submitted photos of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
For the spiral balance, see our S900-30. This has an outer tube with a 3/8" diameter and 30" length. As for the pivot shoe, can you tell me its thickness? Can you also show me a picture of the pivot bar?
A quick learner says:
Pivot shoe is 1/2" thick

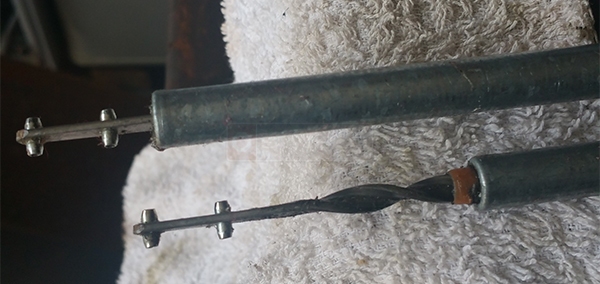

User submitted a photo of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Thanks! Looks like you're showing the balance. We need to see the pivot bar. This is the thin metal piece that installs at the bottom of the sash and installs in the pivot shoe. That will help us determine what pivot shoe will be most compatible with it.
