Spring balance for single hung window

A quick learner from South Lake Tahoe CA says:

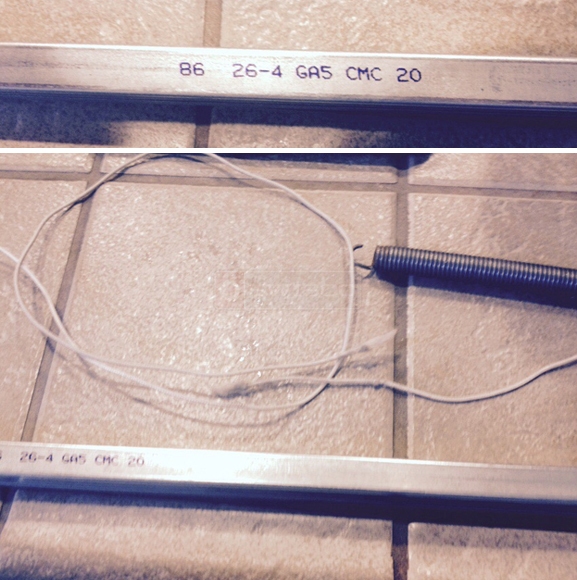

My client has a window with this balance in it and the string broke. The whole part measures 26", the string (however broken) measures approximately 37". I just need to order whatever parts you recommend to fix the window. I've attached a pic with the part number. I look forward to your response.
Thank you,
User submitted photo of their window balance.
Profile picture of Tom
Tom from SWISCO responded:
You would need to replace this whole balance. I would be happy to make a recommendation, but we need a bit more information. First, can you show me both ends of the metal channel? Specifically, I'd like to see if you have any nylon attachments on either end. I would also need to see a picture of the piece that broke off the end of that cord. Thank you!
A quick learner from South Lake Tahoe says:

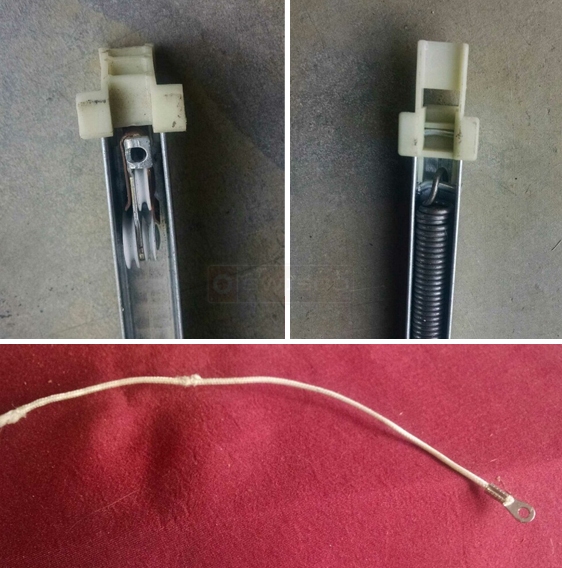

Thanks for the response! Here's more pics;the first two are of the end caps, and the second two are of the two ends of the snapped cord.
Thanks again,
User submitted photo of their window balance.
Profile picture of Paul
Paul from SWISCO responded:
Thank you. Based on these new pictures, I would recommend our S385-27 channel balance. This comes with a 19-005 top and 15-004 bottom pre-attached, so just make sure those match. I would also recommend a 2640 option, which can carry a window sash weight of 19 through 26 pounds.
A contractor from South Lake Tahoe says:
Thank you very much!
