Storm door mortise lock

A quick learner from New York says:
What is the replacement for a Pado 0794 storm door lock?
Profile picture of Tom
Tom from SWISCO responded:
I'm afraid we have no record as to whether the 40-049 can replace a Pado 0794 storm door lock. Can you show me a few pictures of your existing hardware? Can you also give me detailed measurements? That will enable us to confirm. Thanks!
A quick learner from New York says:
This is a pado lock 0794 made in Brazil
Length of lock is 5 3/4"
Face plate 7 1/2"
Depth 1 1/2"
Side attachment holes are 6 1/2" apart.
If you don't have this lock what is the replacement?

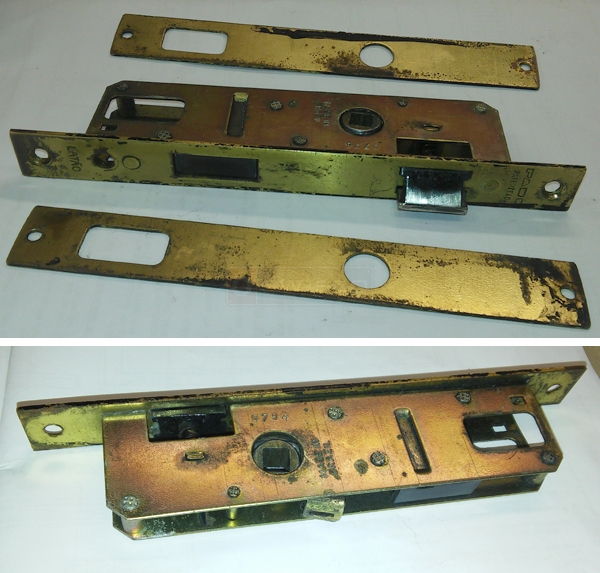

User submitted photos of a mortise lock.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
I checked the measurements on the mortise lock that comes with the 40-049. The body of the lock (without the face plate) is 5-13/16", while the depth is 1-9/16". Finally, the back set is 7/8". These measurements seem close to your measurements. What do you think?
