Suggested part to replace

A handy person from California says:
July 2, 2013
I would like to order channel balance:

From all of the measurement it looks like I need - 27" Series 351 Channel Balance
Product Code: S351-27

Marking
26 4 Caldwell KM


Measurement
1/2 wide by 27 length

Can you confirm this before I order the part.

Thanks,

John

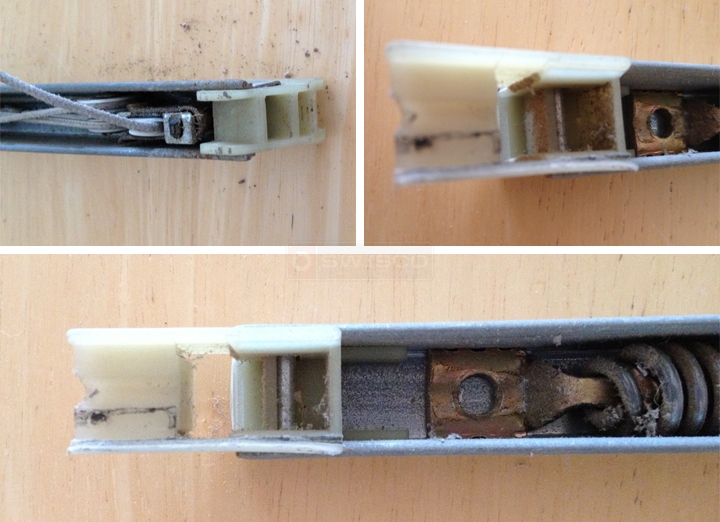

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
July 3, 2013
Hey, John. I can't confirm whether the Series 351 is what you have or not without knowing more about that bottom shoe. It could either be the 15-001 or 15-002, but I can't be sure based on these images. Check out the diagram below and tell me which is closer.
Comparison of 15-001 & 15-002
Comparison of 15-001 & 15-002
A quick learner from California says:
July 3, 2013
I measured and it is 1". Which Series should I purchase. Thanks
Profile picture of Tom
Tom from SWISCO responded:
July 3, 2013
If it's 1", I would stick with our Series 351 balance.
Channel Balance Shoe, 1-1/8" Depth
Channel Balance Shoe, 1-1/8" Depth
15-001
$0.74
Channel Balance Shoe, 1" Depth
Channel Balance Shoe, 1" Depth
15-002
$0.74
27" Series 351 Channel Balance
27" Series 351 Channel Balance
S351-27
$10.77
