Survivor coil balance

A quick learner from USA says:
Hello, I have a double hung vinyl window made by a survivor technologies that no longer makes the windows it is about 10 years old and my window want stay up I have attached 2 pictures of the parts that I need have. Any advice would be appreciated. Thanks Ed

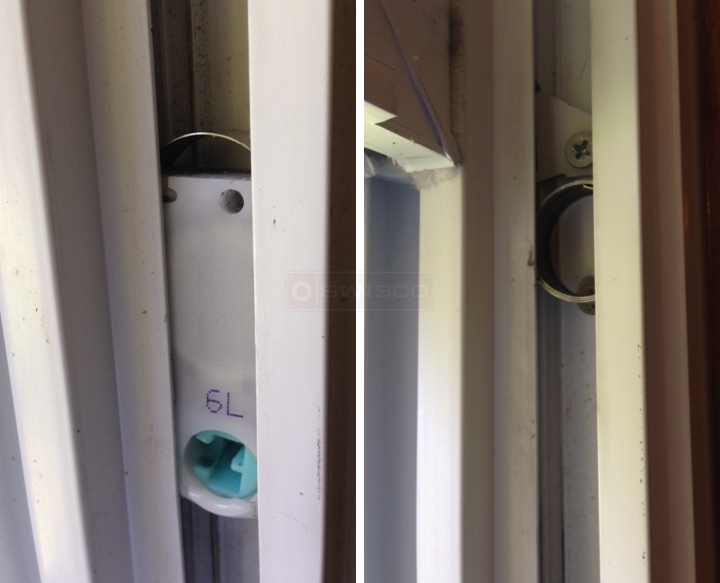

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
Is the spring the only part you need? It may be. In any case, I'll list all the parts you showed.

In your photos, I see the 16-024 mounting bracket, the 15-087 coil housing pivot, and a broken S180-6 coil spring.

There should be a cut-out at the top of the window track where you can remove your balance system, so you can see the parts and gauge what's broken. You'll only need to replace the damaged parts.
A home owner says:
Hello Paul, I ordered springs do you have a video or diagram on how these parts work together. Thanks
Profile picture of Paul
Paul from SWISCO responded:
We do! Check out the illustration below, this should clear things up for you.
Series 180 coil balance diagram
Series 180 coil balance diagram
Thank you for your business!
