There are no name, numbers or markings on the existing hardware.

A quick learner from Anderson, SC says:
March 9, 2017
I have 7 window sashes each weighing 20 lbs. All of the coils are broken. Attached are two photos taken of the existing hardware. I think I will need 14 S140-20's to repair all seven. Judging from your website photos, the S140-20's include all the parts I will need to replace.

I also have a small window with a single coil, probably about a 10 lbs. sash window.

Please advise exactly which parts I will need for the complete repair.

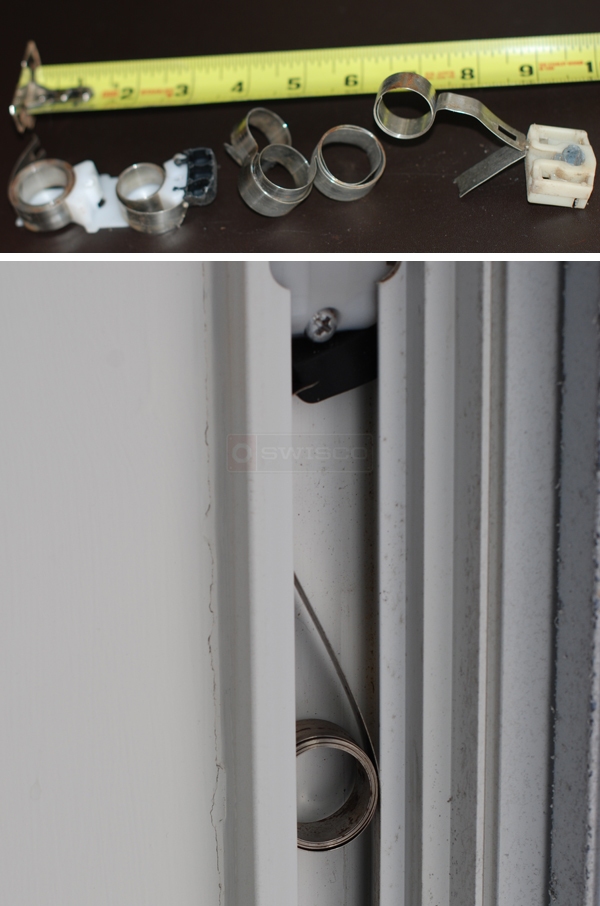

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
March 16, 2017
The Series 140 balance may work, but you would also need a new pivot bar to work with it. Consider our 26-398 or 26-405, depending on the screw hole placement.
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
Round End Pivot Bar, 2-1/2"
Round End Pivot Bar, 2-1/2"
26-398
$1.70
20 lb Series 140 Quick-Tilt, Dual
20 lb Series 140 Quick-Tilt, Dual
S140-20
$14.72
