Thermal Guard Windows model 405 balances

A handy person from Allentown, PA says:
October 28, 2015
I think I'm going to need balances and pivot shoes. Also the loading tool and jam spreader. The windows are about 35 years old. They are the tilt style in various heights.

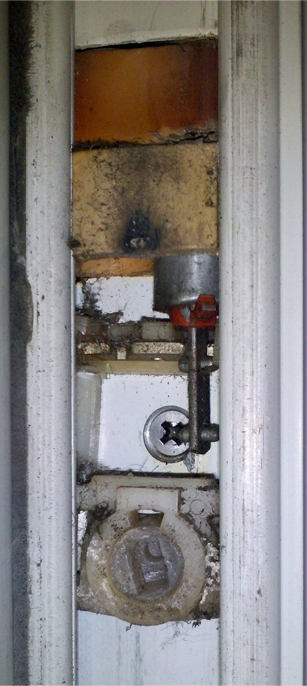

User submitted photo of their window hardware.
Profile picture of Tom
Tom from SWISCO responded:
October 28, 2015
Thanks for posting. It looks like you have the larger balance tube, likely with a diameter of 5/8" or 9/16". If so, I would recommend our Series 600 spiral balance. As for the shoe, could you give me its width and thickness? Thanks!
A handy person from Allentown, PA says:
November 9, 2015
It is 1-1/4" wide and 5/8" thick. If you include the cam area it is 3/4" thick.

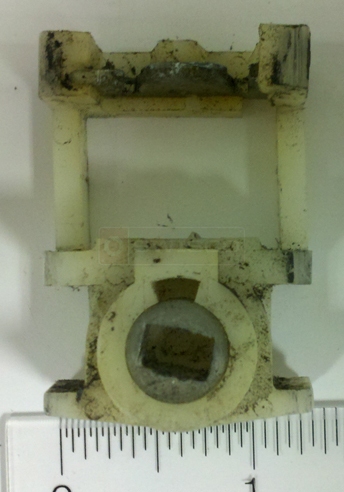

User submitted photo of their window hardware.
Profile picture of Tom
Tom from SWISCO responded:
November 10, 2015
Thank you! This information is perfect. Seeing the shoe out of the window is a huge help. This exact part actually isn't made anymore, but our 15-070 should work as a substitute. Check it out and see what you think.
Thermal Gard Pivot Shoe
Thermal Gard Pivot Shoe
15-070
$4.72
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
Jamb Spreader Set
Jamb Spreader Set
75-069
$165.20
