These are the parts I need...Hope you can help..

A quick learner from USA says:
These are the parts I need...Hope you can help..

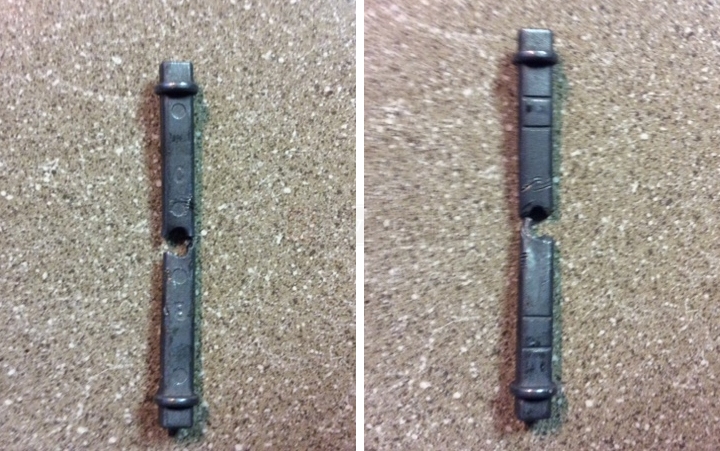

User submitted photos of a pivot bar.
Profile picture of Paul
Paul from SWISCO responded:
Is there any way you can show me a picture of an undamaged version of this pivot bar? Can you also give me your dimensions? Specifically, I need to know the distance from the end that goes into the pivot shoe to the screw hole. Finally, show me a picture of the pivot shoe in which these pivot bars insert.
A home owner from Roswell Ga says:
I don't know how to up load photos.
The pin is 4.187 inches long.
It's for a window..so you can tilt it in or remove sashe.
I don't know what a pivot shoe is
I am just trying to Help someone out that has 2 broken pins.
The Windows are Kensington Quantum 2 windows and they went out of business.
If you could help, you and I would be Hero's
Thank You!
Profile picture of Paul
Paul from SWISCO responded:
The pivot shoe is the rectangular plastic part that this pivot bar fits into. I'm confused, though. You uploaded pictures above. I just need to see a complete pivot bar that hasn't been broken in half, as well as the shoe. Concerning your measurements, the total length is not as important as the distance from the screw hole to the head of the pin. With this information I should be able to make a good recommendation.

In the meantime, you could consider our 26-433. I believe the company in question used this in the past. It has a different head than your current pin, but it may still work. That said, without seeing the pivot shoe I have no way to be sure.
