This is from a tiltout window

A handy person from Highland Park, IL says:

June 2, 2016

We have two windows in my son's new (to him) condo that won't stay up. The small metal piece at the bottom of the windo is broken off.

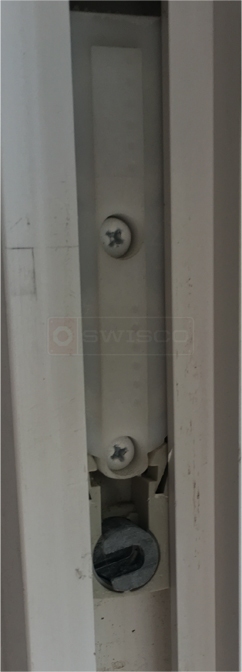

User submitted image of their window hardware.

Paul from SWISCO responded:

June 3, 2016

Sure! That looks like our 15-177 pivot shoe. Let me know what you think.

A handy person from Highland Park, IL says:

June 8, 2016

This is a picture of one of the sash pivot bars. It measures 2.5 inches on the long side and 1 inch on the short side. The end piece that fits into the pivot shoe is broken off on several windows.

Paul from SWISCO responded:

June 9, 2016

Thanks for getting back to us. Is there any way you can remove this pivot bar from the window and show us a couple pictures of it from different angles? That will help us find a good match for you. I would also like your dimensions.

A handy person from Highland Park, IL says:

June 15, 2016

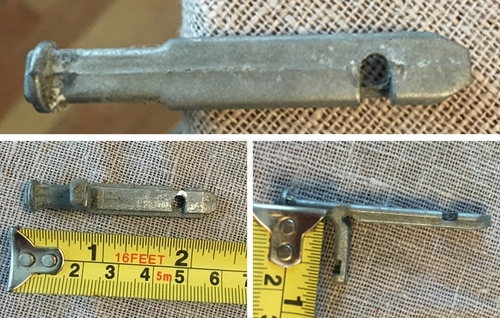

Here are some new pivot bar images.

Tom from SWISCO responded:

June 28, 2016

Thank you for your patience. Please see our new 26-446 pivot bar.
