Tilt pin for Simonton window

A home owner from Southern California says:
Which pin and how to install ....bottom of window is sealed. Window flops out at bottom when elevated.will not stay up. I think tilt pin is broken off and not engaging into the side shoe??

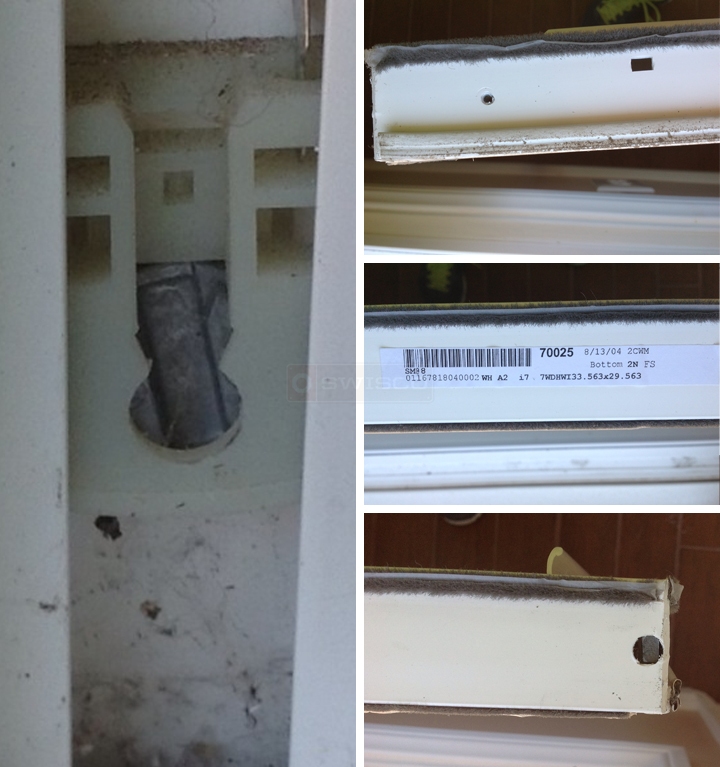

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
It's hard to tell exactly what tilt pin you have. Check out our 26-336. Could this be a possible match? If not, can you remove an undamaged tilt pin and take a few pictures of that for me to see?
Profile picture of Donna
Donna from SWISCO responded:
Your pivot shoe looks a lot like our 15-199. If you agree, then you may want to also look at our 26-378. If you aren't sure, though, then we will need to see a picture of one undamaged and fully removed from the sash.
