Tilt window balance26-7 LX CMC 4

A home owner from Cypress TX says:
April 11, 2017
Channel is 26" long 1/2" wide and tall The lock is 2 1/4 long 1 1/4 wide unlocked and 1 3/8 locked. It uses hook not a screw to attach to window.

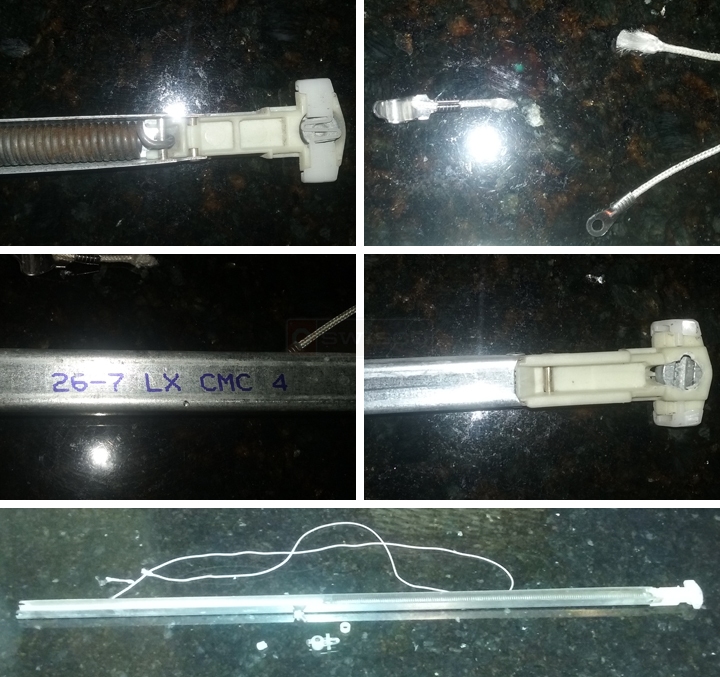

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
April 17, 2017
I'm afraid we do not have a replacement for this balance. It looks kind of like an old, probably discontinued balance. Could you possibly use our Series 795 channel balance as a replacement? If so, we'd have to custom make it to attach at the top with a 15-198 hook. Does that look good to you? Before we begin, I'll need to know the weight of your sash, the width of the "T" shoe, and how many overall you need. I'd also like you to confirm that the metal channel by itself is 26" long. Thanks!
A quick learner from Cypress TX says:
April 20, 2017
Tom thanks for your help. I think the following will do the job. I need two balances. 2 series 795 option 26 D. The channel is 26" long. 2 15-195 T shoes. The width is 1 1/4" unlocked. And 2 15-198 hooks.

I hope this will do it.

Andy
Profile picture of Tom
Tom from SWISCO responded:
April 21, 2017
You got it! I'll email you a custom link and price quote for two of these.
A quick learner from Cypress TX says:
April 21, 2017
Good news Tom! Does the balance include the Hooks?
A quick learner from Cypress TX says:
April 21, 2017
Tom I'm sorry the invoice states the hooks are included. I should have asked if the T shoes are
included.
A quick learner from Cypress TX says:
April 22, 2017
I'm sorry one more question. Will all three components will be assembled by you?
Profile picture of Tom
Tom from SWISCO responded:
April 24, 2017
Yes! These balances include the shoe, hooks, and will be fully assembled and ready to install out of the box.
A quick learner from Cypress TX says:
April 24, 2017
Thanks Tom
