Tilt window pin & Pivot lock shoe

A quick learner from St. Albans, WV says:
July 25, 2017

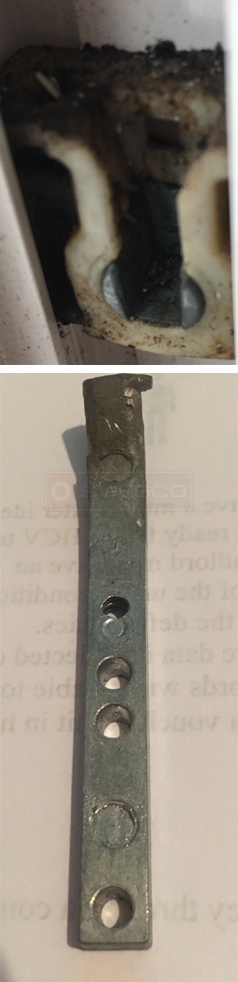

Pin is flat with a small extension on end. One in picture was bent getting it out. It is 3"L x 4/16"W x 3/16"Deep. Is 1 10/16 from small hole to the back end and 1 1/4" from first large hole by pin to the back end. From the underside, the size of holes are reversed (small is large & large 2 holes are small.

Lock shoe uses a coil and is 1"High x 1 1/4-1 1/2"Wide x 5/8" - 10/16"Deep.

Also, is there a video on how to attach the coil?
Tilt window pin & Pivot lock shoe
Profile picture of Paul
Paul from SWISCO responded:
July 28, 2017
The pivot shoe looks like our 15-111, which is designed to work with our Series 160 coil spring. The pivot bar, meanwhile, looks like our 26-241. Please compare this hardware to your own to compare.

I also think you'll find the video below to be helpful.
