Tilt window repair

A quick learner from Seattle says:

June 1, 2017

Height top to bottom frame 31 5/8 inches. I just ordered latches from you today, then noticed the rods to the "broken" window are also missing.
Thanks

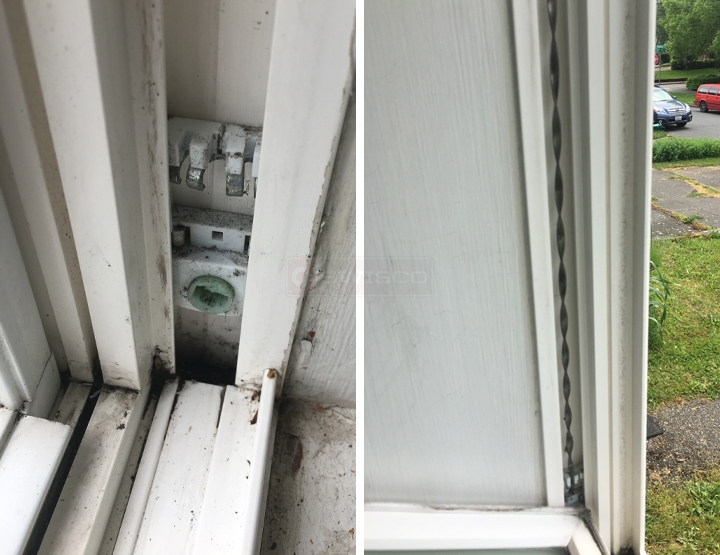

User submitted photos of a window balance.

Paul from SWISCO responded:

June 6, 2017

Thanks for posting. Sounds like you need new spiral balances. Can you confirm the diameter of the outer tube on the balance left remaining? If it's 5/8" or 9/16", I recommend our Series 600 spiral balance.

If you also need the pivot shoe, I recommend our 15-118. Just make sure the measurements all match up.

Spiral Balance Charging Tool for Tilt Windows

75-006

$9.97

12" Series 600 Spiral Tilt Window Balance

S600-12

$7.92

Pivot Shoe, 9/16" Thick

15-118

$2.20
