Truth EntryGard Casement Operator

A contractor from Dayton, Ohio says:
March 22, 2016
Looking for a replacement for this operator in both right and left hinge side.

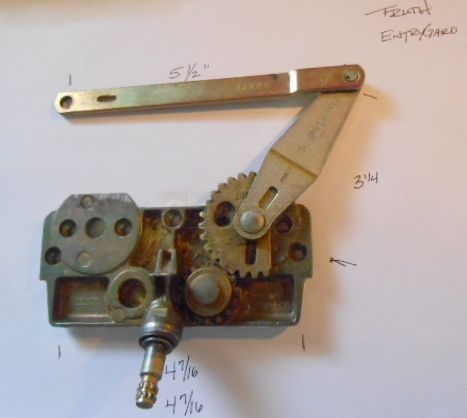

User submitted a photo of a window operator.
Profile picture of Tom
Tom from SWISCO responded:
March 24, 2016
Thanks for posting! Please see our 39-035 and 39-036, I think these could work for you.
A contractor from Dayton, Ohio says:
April 8, 2016
Tom, Everything was fine with the part was suggested, however the pivot arm is only 4-1/2" long. The part that I have is 5-1/2" long, do you have the unit available with that length of arm?
Profile picture of Tom
Tom from SWISCO responded:
April 8, 2016
Hmm... I'm afraid we haven't been able to find anything with that size arm. You have two possible solutions: you could try to adjust the placement of the bracket to which the arm connects, or you could drill off the old arm and place it on the new operator with a 62-014 rivet. I have done this in the past in similar circumstances.
Truth Hardware Entrygard Dyad Window Operator
Truth Hardware Entrygard Dyad Window Operator
39-035
$32.30
Truth Hardware Entrygard Dyad Window Operator
Truth Hardware Entrygard Dyad Window Operator
39-036
$32.30
Rivet
Rivet
62-014
$1.12
