Trying to identify Top sash guide/window glide

A professional from West Palm Beach says:
Hello,
I'm trying to identify this top sash guide without much luck.

I've tried the 18-009 which was close, the hole pattern is wrong. The clip has a 7/16" reduction that allows the guide to be approx 1/8" of Centerline of the window for the screws into the extruded channel. Any thoughts to get closer?

I'm also looking for a glide clip these are small black plastics that are like u channel pcs to prevent aluminum drag on aluminum drag.

Windows are manufactured in 2007 possibly by a company Vaugator-- I really cannot tell from the AAMA label; South Florida, non impact

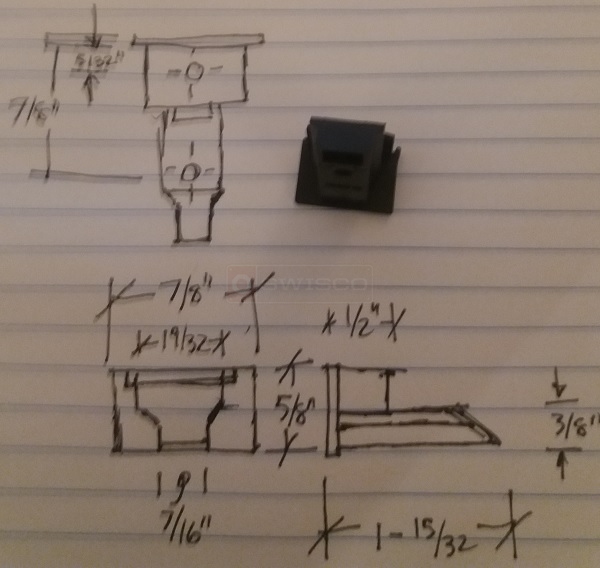

top sash guide
Profile picture of Paul
Paul from SWISCO responded:
I believe you might have our 18-183 top sash guide. Look it over and see what you think. Regarding the "U" shape black guide you mentioned, the 55-035 is something that may work. Aluminum manufacturers used this some time ago. If not, can you send some photos and dimensions of yours?
