Tumbler lock for sliding glass door

A quick learner from Toronto says:
Hi,

I have a 1.5" thick sliding glass doors.
Can you suggest a tumbler lock for it?
My handle is black and looks a lot like
your 82-002K

Thanks,
M.

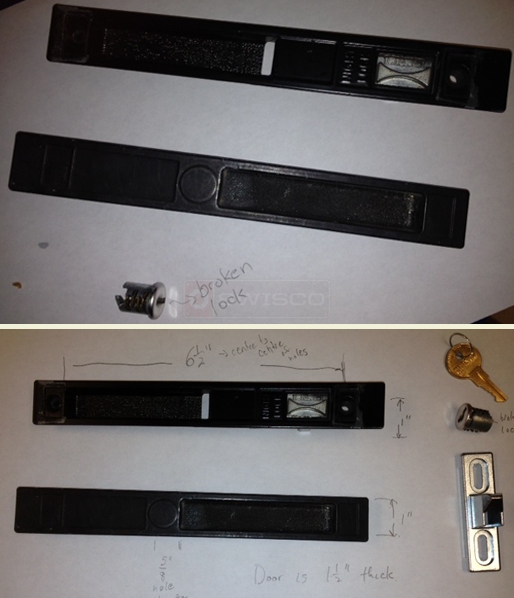

A user submited photo of door lock
Profile picture of Dave
Dave from SWISCO responded:
Thanks for posting! Your handle does look very similar to the 82-002K. The 82-302 key tumbler can be used with that handle set. See if you think it will work for yours.
A quick learner from Toronto says:
My concern about the 82-302 key tumbler is that it is only 1" long [13/16"+3/16"]. Would it not have to closer to 1.5" long? The thickness of the door is 1.5" wide.
Profile picture of Dave
Dave from SWISCO responded:
It depends on your original cylinder. What size is the one in your picture? Just by eyeballing it, they seem like it might match up with our 82-302. How much of it was broken off?
