US windows Factory / Coil Balance

A home owner from North Bergen, NJ says:
I got a window installed in 2006 the two coil balance are broken. The window is from US Windows Factory (out of business)
Window sash measurements are 32 1/2" x 27 1/4".
I can't figure out the right replacements parts in your web site .

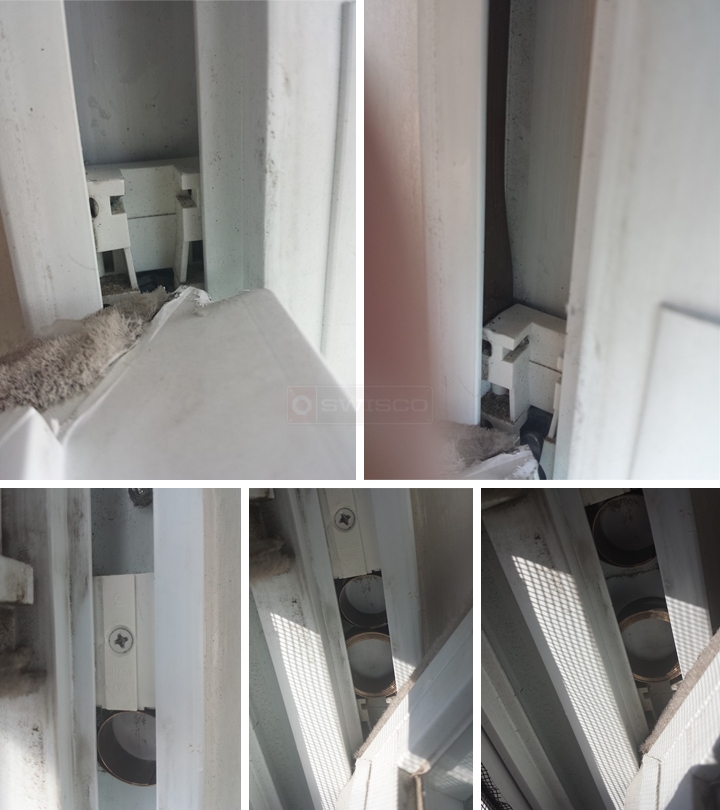

Pictures included shows the broken window an a good window as well for reference.
Thank you in advance for your help.

P. Garcia
User submitted photos of a coil window balance.
Profile picture of Paul
Paul from SWISCO responded:
I'm sorry, but I don't recognize this Series coil balance. I will need some additional information before we can research a replacement.

First, please remove the window sash and take a photo of the pivot lock shoe. In your pictures above, the sash is obscuring important details. I will also need to know the width and thickness of the pivot shoe. These dimensions are essential! Please also take a photo of the bottom pivot bar on the sash. Finally, how is the spring attached to the shoe, and what is the width of the spring?
A home owner from North Bergen, NJ says:

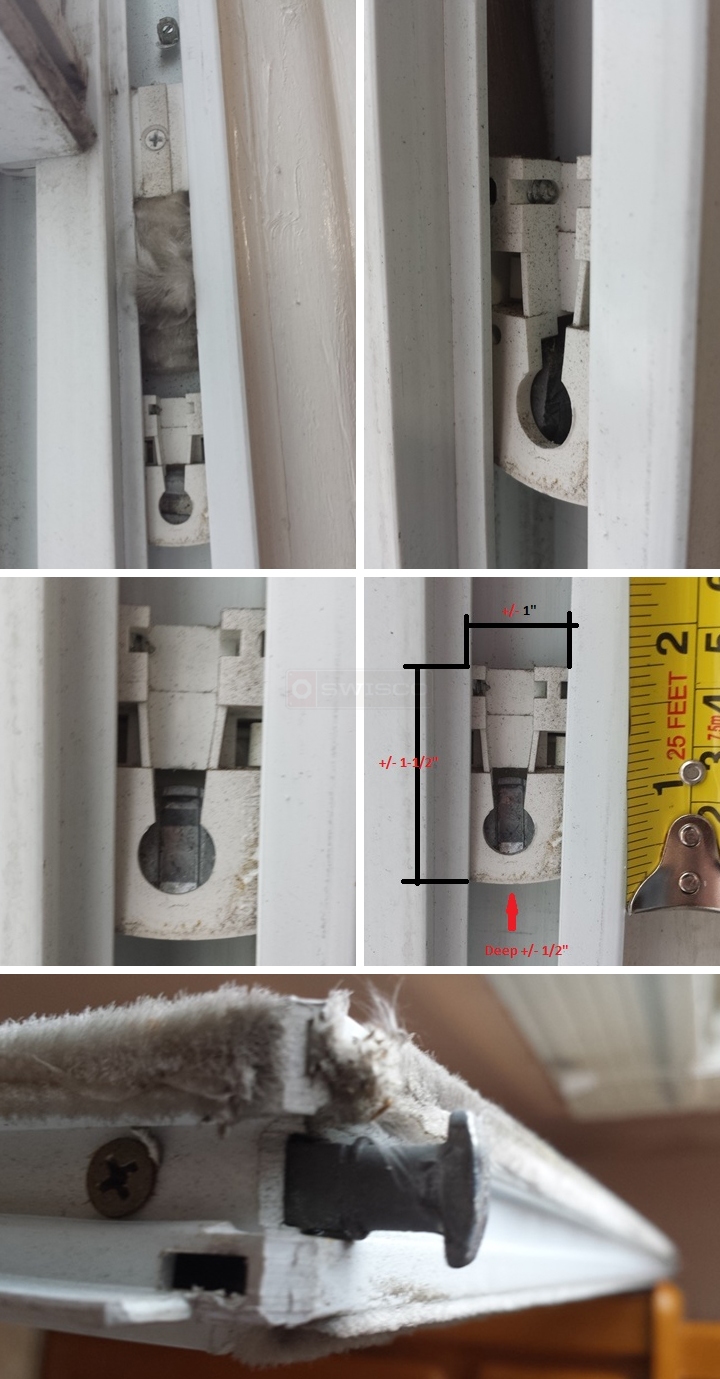

new pictures as requested hopefully this time are the right ones.
the with of the spring is +/- 1/2"
User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
Thank you. For the coil springs, I recommend that you consider our S152-9. This can work for sashes weighing from 17 through 19 pounds. As for the pivot shoe, see if our 15-177 is a good match. The most important dimensions are the width and thickness, so you should triple check those to make sure it matches.
