Unknown patio door roller

A quick learner from VA says:
I have two patio door rollers that I need help in finding. Thanks

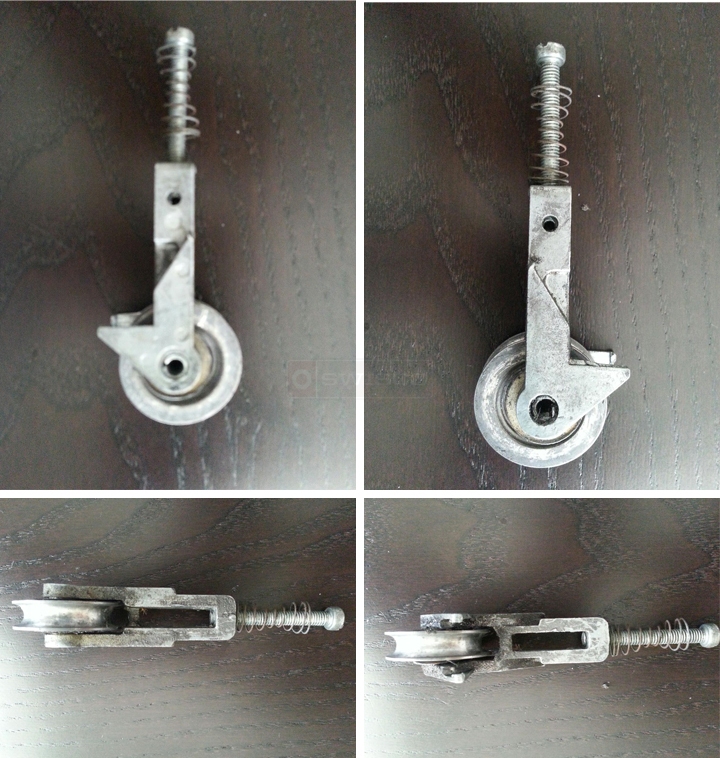

User submitted photos of a patio door roller.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting! I'm thinking this might just be the inside part of a larger roller assembly. Take a look at our 81-002 or 81-003 and see if either of these match what you have. You may need to remove the rest of the roller housing installed in the door.
A quick learner from VA says:
Thanks. The 81-002 looks like it. I am unable to figure out how to take out the whole assy, I had to pry out this with quite a difficulty.
Profile picture of Paul
Paul from SWISCO responded:
Let me help you. First, remove the sliding glass door from the outside and lay flat on two saw horses or maybe something like a picnic table. The screw above the adjusting screw is the frame screw; remove it there and on the other bottom corner. With a mallet and block of wood, knock off the bottom door rail carefully off the glass. You will see the screw holding the wheel housing to the door. Remove the screw and take out of the wheel housing. Repeat this for the other wheel housing, as well. Replace the new rollers, carefully put the bottom door rail back using the mallet, and reinstall the frame screws and the door on the track. Don't forget to adjust the rollers so door rides smoothly.
