VIKING WINDOW BALANCE PART #2090 F RS 31

A home owner from Rio Oso, CA says:
September 21, 2013
I need to replace many blances for windows, era 1990. Metal channel is 21 inches long x 9/16 inches wide. Approximately 6 windows need parts.

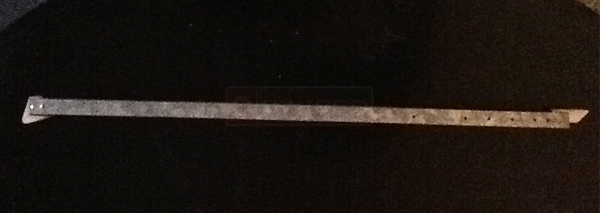

User submitted a photo of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
September 23, 2013
I'm afraid I can't quite tell what your nylon attachments are. Can you take a few closer pictures of them both? That will help me find a good replacement. Can you also tell me what the weight of your window sash is?
A quick learner from Rio Oso California says:
September 28, 2013
These windows are installed in my Ranch Home 135 miles away.
I will need to go to the ranch to weigh the sash and get back to you. The sash are dual glazed and rather heavy. Would it make more sense to just send the balance to you so you can see it first hand?
I will get back to you in a few weeks with the information you request.
Thanks for your help.
Profile picture of Tom
Tom from SWISCO responded:
September 30, 2013
While seeing the balance would help, it would be much faster and easier for you if you were to just take closer pictures of the attachments. We also would not be able to tell what strength spring you need just by holding the balance in your hand. We will need to know the sash weight for that. Thank you!
A quick learner from Rio Oso CA says:
November 9, 2013
26 1/2 lbs window sash and please see uploaded pictures for replacement part. I need 20 pieces.

Thanks so much again for your assistance.

Cheers,
Bud

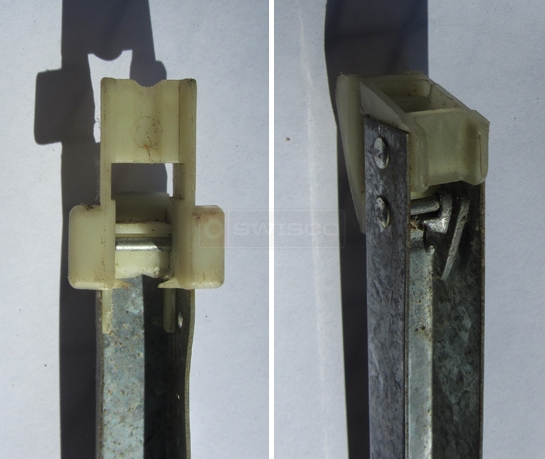

A customer submitted image of their channel balance attachments.
Profile picture of Tom
Tom from SWISCO responded:
November 9, 2013
Perfect, thank you. I now need to figure out what that bottom shoe is exactly. Check out our 15-001 and 15-002 and tell me which is a closer match.
Comparison of 15-001 & 15-002
Comparison of 15-001 & 15-002
A quick learner from Rio Oso, California says:
November 9, 2013
15-001 appears to match 1 1/8" at base
Profile picture of Tom
Tom from SWISCO responded:
November 11, 2013
Thank you. That should be everything we need. Check out S395-21 with the 2050 option. Two balances with this option can carry a window sash weight of 23 through 27 pounds.
Channel Balance Shoe, 1-1/8" Depth
Channel Balance Shoe, 1-1/8" Depth
15-001
$0.74
Channel Balance Shoe, 1" Depth
Channel Balance Shoe, 1" Depth
15-002
$0.74
21" Series 395 Channel Balance
21" Series 395 Channel Balance
S395-21
$9.38
