Viking Window balance 20 3 KQ CALDWELL

A landlord from Portland says:
Hello,

20 years ago I put Viking windows in a bunch of my rentals. One of the window channel balances has failed. If I can get the right part I will buy enough to keep me in parts for another 20 years.

Your pictures in the catalog are a huge help. As near as I can tell I need an S380-20 BUT mine has probably a 15-002 shoe and the back of my shoe is more "pointy" than your 15-002. Will the 15-005 shoe (that comes on the 380) work where there is a shoe that looks closer to 15-002? Those little tabs are the difference I can see from here.

Thank you for any help.

-Doug
Profile picture of Tom
Tom from SWISCO responded:
Hi, Doug. I'm with you, these channel balance attachments all look pretty similar. But, from my perspective, this situation is very theoretical. Let's make this a little more concrete: can I see your balance? It'll be easier for me to take a look and judge if there's a significant difference between what you have and what comes with our Series 380 balance. If you can take photos of both ends and send them in, that would be great.
A landlord from Portland says:
Hi Mike,
Thanks for the help!!

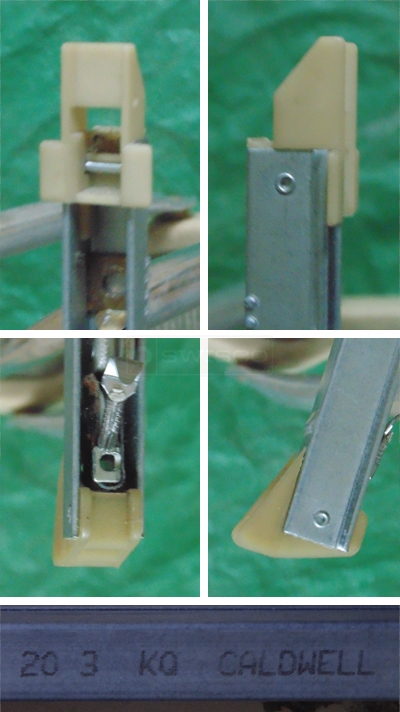

Attached are a couple of pictures. Using your guidelines it is 20" and 1/2". I took a bunch of pictures if you need more.

thanks,
-Doug
Channel balance
Profile picture of Tom
Tom from SWISCO responded:
Thanks! I'm instantly reminded of our Series 395 balance, which has a 19-005 top and 15-001 bottom. I wouldn't worry too much about the shape of the shoe, since yours is close enough. The depth (or heel-to-toe) measurement is more important. The 15-001 is 1-3/32". How well does that match yours? When you measure, make sure to account for wear. In other words, your depth may be a little less than it once was.
