Viking channel balance 2840

A home owner from Petaluma, CA says:
1/2" wide and measured at 29" length.

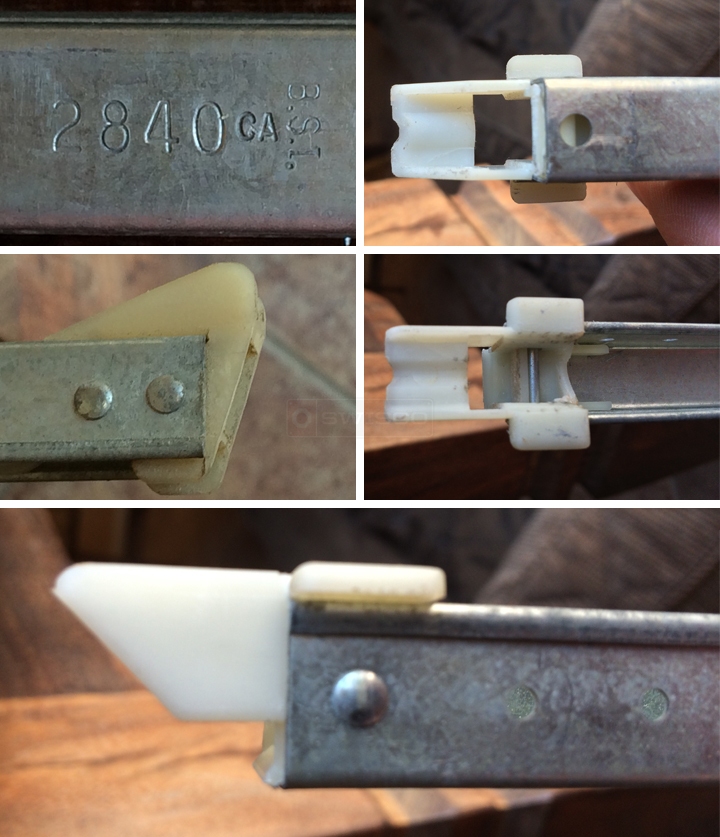

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Good morning, and thanks for posting. Looks like your top attachment is winged, while your bottom is not. Since this doesn't match any of our standard Series, your balance will have to be specially made.

Before I can work on that, though, I'll need to figure out what that bottom shoe is. Check out our 15-001 and 15-002 and tell me which is a closer match.
Comparison of <a href='http://www.swisco.com/Channel-Balance-Shoe/pd/Replacement-Sash-Support-Channel-Balance-Shoes/15-001'>15-001</a> & 15-002
A home owner from petaluma says:

The 15-002 looks a little closer. Mine has a continuous line from left to right(as pictured on the 002) without the short leveled off portion, as both of these have.

Also the top looks most closely to the 19-005 with the distance from top of piece to bottom of wing 1 and 3/16ths inch. My piece has a semicircular cutout/curve on both the top and bottom crossing pieces? What do you think?
Profile picture of Tom
Tom from SWISCO responded:
Great. Check out this Custom Channel Balance Request Form I've started for you based on your specifications and fill out the blank fields. One of our representatives will get back to you with a price quote and an item to add to your cart.
