Vinyl Window Balances

A home owner from Gibsonia, PA says:
I need some window balances for my tilt vinyl windows that are 7-8 years old. The only marking on the windows is AWS etched in the corner of the window. The balance is 28" long x 5/8" wide x 1/2 " deep. The window glass is 30 3/4" w x 26 5/8" tall. The balance marking is DB102 in small letters on its side and 28B in larger letters.

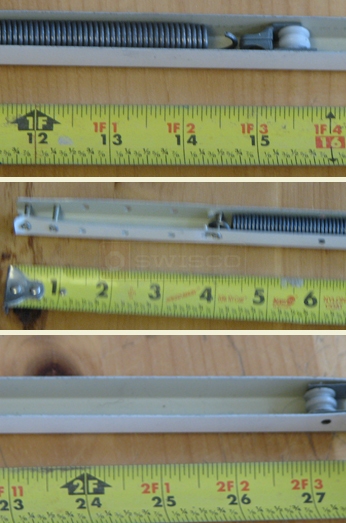

A user submited photo of window channel balance
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting! Unfortunately, the images provided are not enough for me to identify this balance. Can I see a picture of the attachment at the end of the string? That will help me determine what Series channel balance you have.
A home owner from Gibsonia, PA says:
Here are a few more pics. Hope they help.

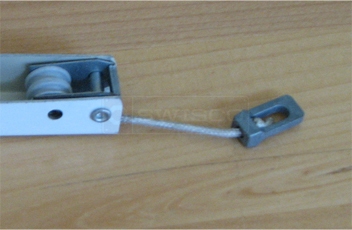

A customer submitted photo of channel balance attachments.
Profile picture of Paul
Paul from SWISCO responded:
Thank you. Please take a look at our S770-28 channel balance. Does that look like it may work?
A home owner from Gibsonia, PA says:
I think it will work. I will order a couple. Thanks for your help.
