Vinyl Window Pivot Shoe

A quick learner from Johns Island, SC says:
I amy trying to verify if you have this type of plastic pivot shoe for use in a viny window? The pictures don't show, but the depth (thickness) of this part is 1/2". It is actually a 3-part assembly (may be hard to tell by the photos), but would likely be sold as a single piece.

The top edge of this pivot shoe actually hooks onto the bottom the balance channel preventing it from sliding up due to the force of the spring.

If you need additional photos of the window frame, etc., please let me know.

Thank you for your assistance.

Stephen

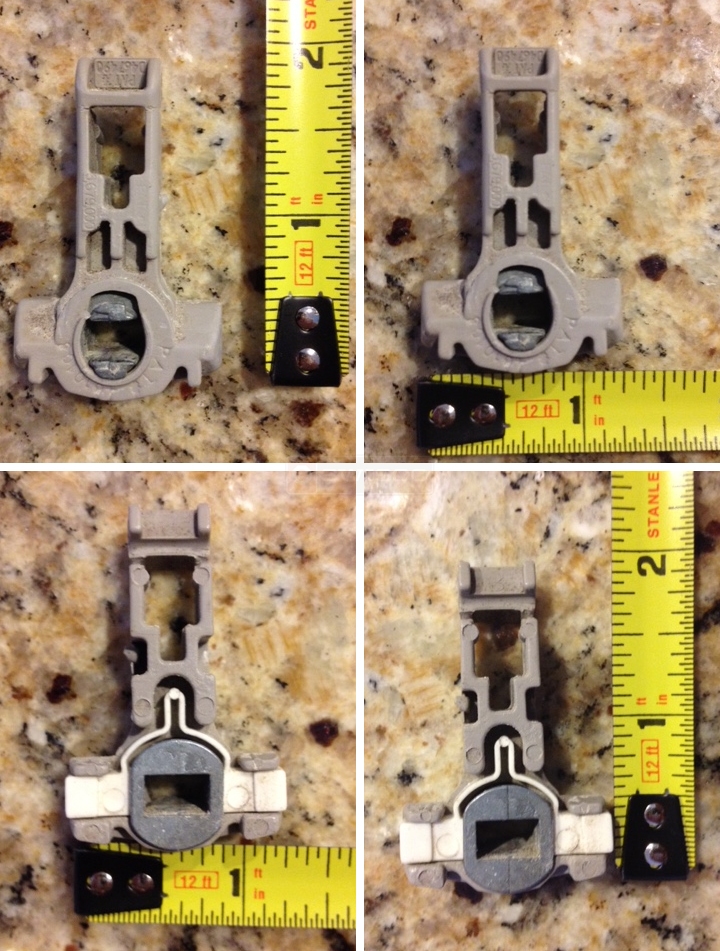

User submitted a photo of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
Hello, Stephen. This looks like our 15-195 T-Lock shoe, which also comes with our Series 795 tilt channel balance. Is this what you need?
