Which size do I need

A handy person from Cornelius, NC says:
July 27, 2015
The windows are 10 yrs old and they came out of there balance mechanisms and appear a dead weight. The nylon holders seemed to have cracked. They are double pane, tilt to clean, 36 Height by 34 Wide. Should I just replace the whole mechanism? If so, which mechanism do you sale that I need for the window(s)? If I replace the mechanism, will the old part just unscrew from the casing or will the wound up metal tape spring out?

Thanks!

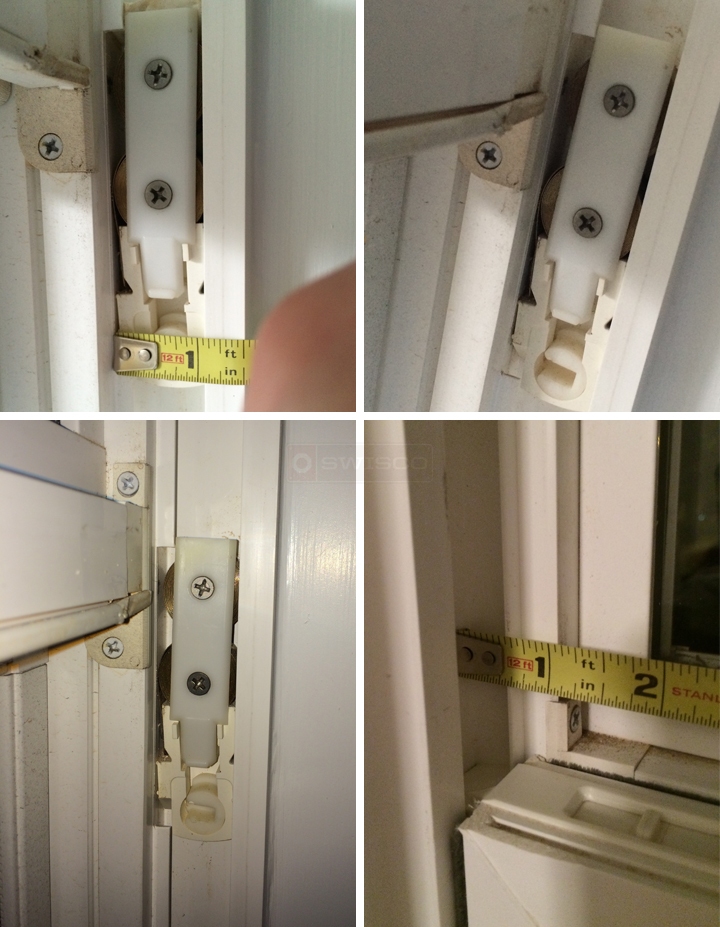

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
July 29, 2015
Thanks for posting! Please look at the right side of this page. I have made a list of parts that you could use to repair your window. Keep in mind that you may not need everything here; you can replace just the parts that have broken and reuse the rest.
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Double Support Detent Clip
Double Support Detent Clip
15-181
$6.17
Balance Bushing
Balance Bushing
15-182
$1.80
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
740 S190 Coil Balance Spring
740 S190 Coil Balance Spring
S190-740
$9.74
