Which spring to buy

A handy person says:
Hi,

I'm trying to determine which balance spring to buy. See attached photo's that have come from Milgard windows. The balance spring itself is 33 inches without the plastic ends.

Thanks for your help.

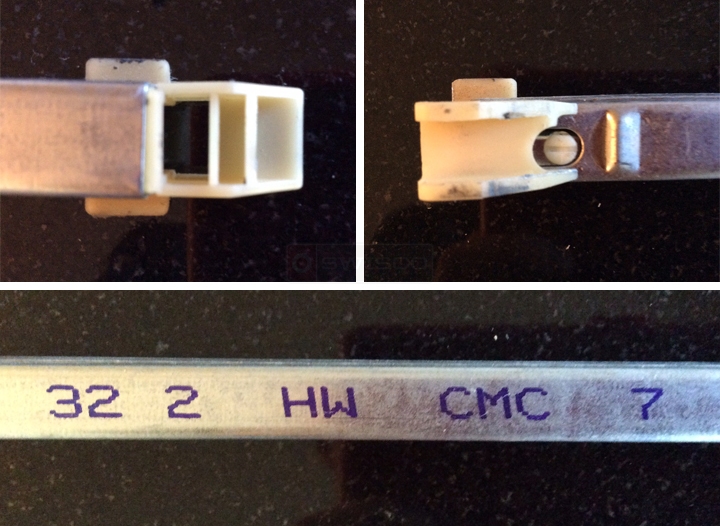

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Hey, thanks for posting. I've narrowed this down to two possible channel balance Series: either our Series 380 or our Series 385.

Now, as you can see, the only difference between these two Series is their bottom shoe. The Series 380 uses the 15-005 while the Series 385 uses the 15-004. I can't quite tell what you have based on your pictures, though. Please carefully compare their dimensions to your own hardware and see which is a better match.
15-004 and 15-005
