Widow tilt bracket part

A handy person from Laurel Maryland says:
It is a corner bracket that attaches to each bottom corner of window to fit into a shoe that slides up and down in the window frame as well as letting the window tilt into the house for cleaning. Bracket is 1 1/4" long along the window edge with two screw mounting holes 3/4 in apart, 1/4" x 1/4" square, 3/4" long U shape protrusion to slip into side shoe holder and 1/2 in protrusion to hold up bottom corner of window.

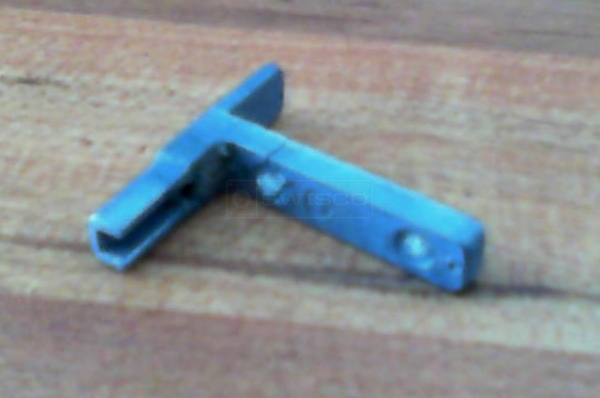

User submitted a photo of a pivot bar.
Profile picture of Tom
Tom from SWISCO responded:
Good afternoon! How about our 26-326? This appears pretty similar to your sample here. Compare the two and let me know what you think.
A handy person from Laurel, MD says:
That is exactly the part I need, ordered half a dozen,
thanks,
Stan
