Window Hardware

A quick learner from USA says:
September 22, 2016
Think I need part numbers 39-413 and 39-348? If so do the clips come on the sill mounted operator? Should I replace the shoe studs? What are the dimensions of the crank body as I measured in my pictures? Are they the same?

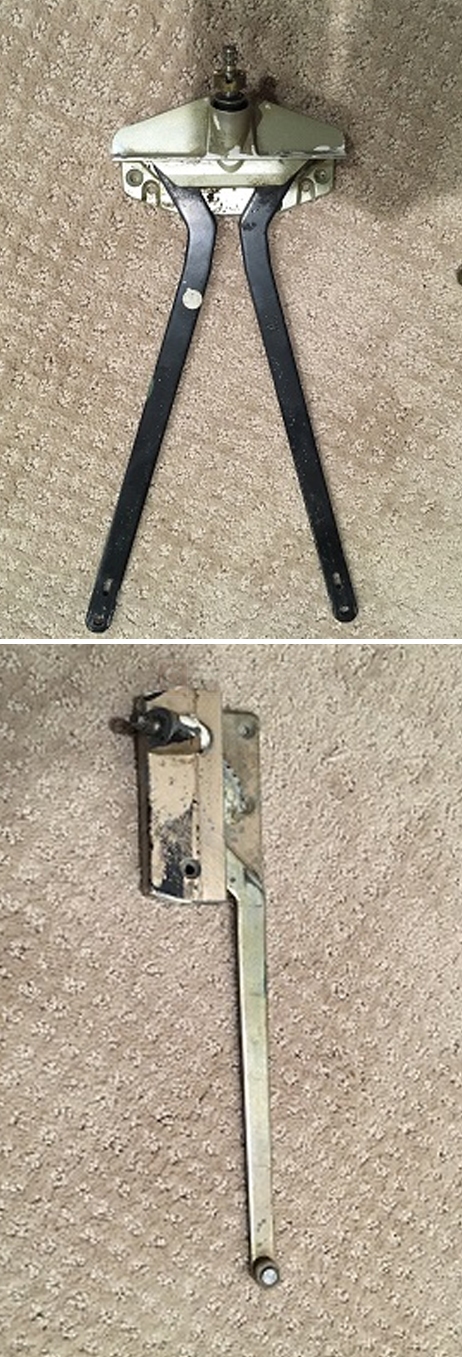

User submitted image of their window hardware.
A quick learner from USA says:
September 23, 2016
Also my window hardware is straight, it doesn't have a upward bend. Looked like yours did? Will this make a difference.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
September 27, 2016
Hello! I agree, the awning operator looks like a good match for our 39-348. Just make sure the end detach clips match up with the ones on your operator arm. As for the casement operator, it looks like you have the older square style body. I think our 39-028E should be the one to match your window. The base has a rounder shape, but this is just aesthetic.
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-028E
$20.70
Sill Mounted Awning Operator
Sill Mounted Awning Operator
39-348
$61.10
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Truth Folding Crank Handle, 11/32"
Truth Folding Crank Handle, 11/32"
39-205
$11.70
