Window & Screen locks

A quick learner from Willingboro, NJ says:
September 15, 2017
I need to replace the lock on both sides of the windows as well
as the screen locks. See the picture attach.

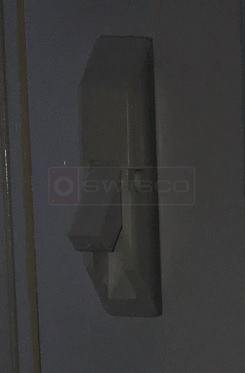

window lock
Profile picture of Tom
Tom from SWISCO responded:
September 19, 2017
You have an old Silverline casement window, it seems. The lock looks like 38-090, and the screen clip may be 70-222. Please take a look at the measurements that we provide online for each item.
A handy person from Willingboro says:
September 20, 2017
Thank you for your help the window locks looks like they will work. However the screen part will not, see the picture attach as this is what's on the screen now.

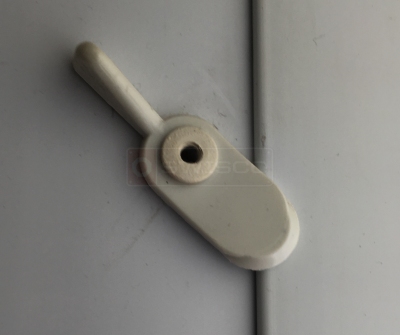

Screen clip
Profile picture of Paul
Paul from SWISCO responded:
September 26, 2017
I'm sorry, you have an older Silverline window. The screen clip you need is our 70-014 and is held in with a 33-005 pop rivet. Let us know if these will work for you.
SilverLine Casement Locking Handle
SilverLine Casement Locking Handle
38-090
$3.92
Turn Clip, 1/16" offset
Turn Clip, 1/16" offset
70-014
$0.25
#44 Pop Rivet
#44 Pop Rivet
33-005
$0.23
Professional Rivet Tool
Professional Rivet Tool
75-012S
$29.20
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
How to install the 70-014 window screen clip
How to install the 70-014 window screen clip
VIDEO
WATCH >
