Window balance and other parts needed

A handy person from Atlanta, GA says:
I have some single hung aluminum windows made by a company called Alenco. They are about 18 years old and some of the balances appear to be failing. One, in particular, will not hold the window up. Others are very difficult to open. In addition, some of the pins that stick into the balances have broken off and some of the clips/releases at the top of the lower sash that releases the window so it can be removed have also broken. One window in particular (see pictures) is the one that won't stay open and has the broken parts. That window is part of a twin and the individual sash is 33.5" wide by 30" tall. I'm unable to find any model numbers on the balance or on the window. What additional information will you need in order for me to find the proper parts? Thanks!

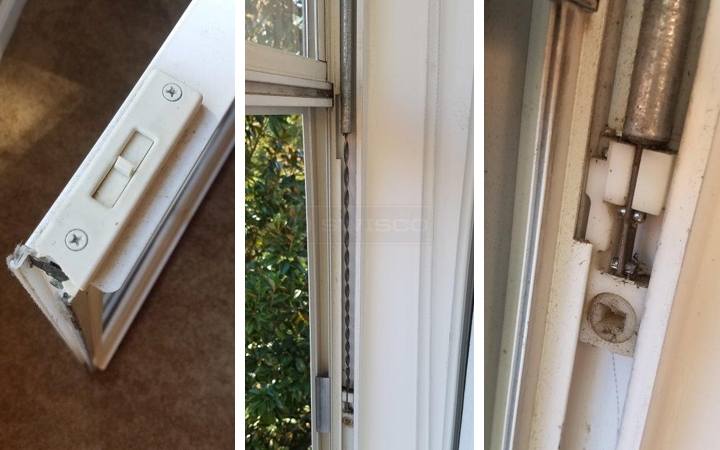

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
Hello, thanks for contacting us. Based on your pictures, I would recommend the following replacement parts: our 26-193 and 26-194 tilt latches, 15-045 pivot shoe, and Series 900 spiral balance. Carefully go over the dimensions, information, and pictures for these parts to confirm that they can work for you. Let me know if you have any questions.
A handy person from Atlanta, GA says:
Thank you!
