Window channel balance 2740 BMI

A home owner from Phoenix says:
I have an Alenco window, the channel balance is marked 2740 BMI. See attached pics. Can you tell me the correct part number to replace it?
Thank you

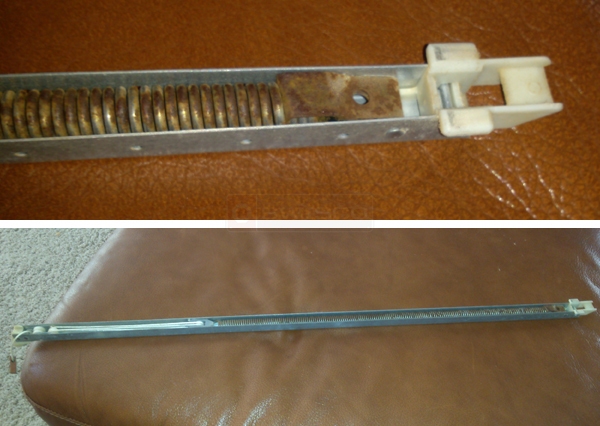

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting. It looks like your top attachment has wings while your bottom shoe does not. I have to figure out what your bottom shoe is. Please look at the measurements for our 15-001 and 15-002 bottom shoes and note their depths. As you can see, they are 1-1/8" deep and 1" deep, respectively. Which measurement more closely resembles your own shoe?
Comparison of 15-001 & 15-002
A handy person says:
It appears to be 1 1/8".
Profile picture of Tom
Tom from SWISCO responded:
Great. So you're looking at a 15-001, right? In that case, take a look at S395-28 with the 2740 option.
