Window crank and latch

A handy person from Acton, MA says:
I am looking to replace all my window cranks and latches to white. I am pretty sure i need a single arm window crank that is 9 1/2 inches due to the fact the the windo is on its own hinge and it measure about 9 1/2" from tip of arm to center of crank, but I want to verify. I have no idea what i would need for the latch. Any help would be great. If you need more information please let me know. Thanks.

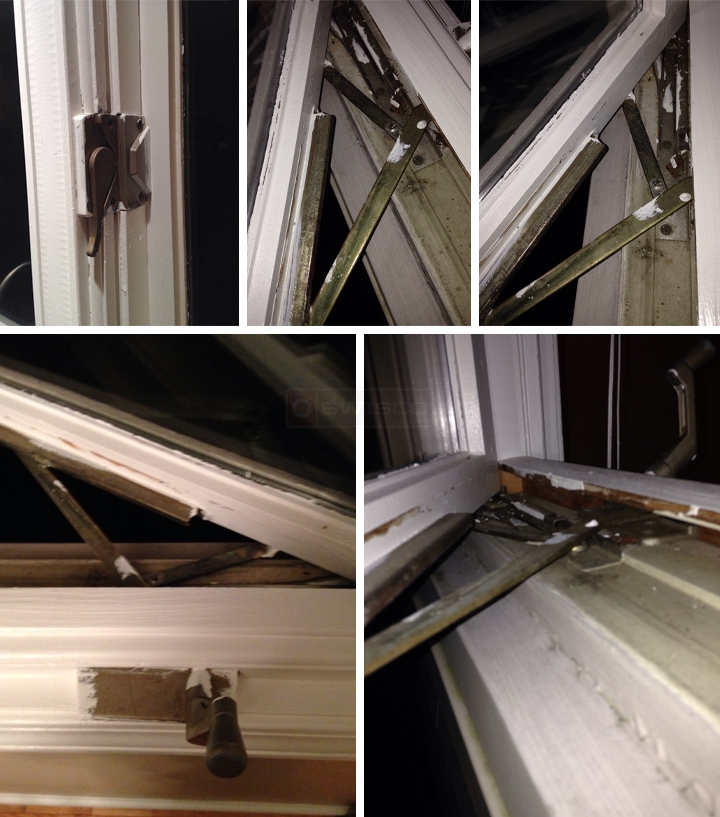

User submitted photos of a window operator.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! For the operator, see our 39-027E and 39-028E, which appear to be newer versions of your old hardware. As for the latches, these are known as casement window locks. Look at our 38-097 and 38-098, which are also newer versions. If these match, then you will need a new keeper, as well. See our 38-079.
A quick learner from Acton, MA says:
Would I still need the crank handle when i purchase these operators?
Profile picture of Tom
Tom from SWISCO responded:
You could re-use your old, but if you wanted new ones see our 39-114L or the 39-205, which can fold.
A quick learner from Acton, MA says:
Do they operators come with the mounting screws?
Profile picture of Tom
Tom from SWISCO responded:
I'm afraid not, but you can re-use your old ones.
