Window does not stay up when opened

A home owner from Rock Tavern, New York says:
Whenever the windows are open they slam shut. The spring on the right side is broken.

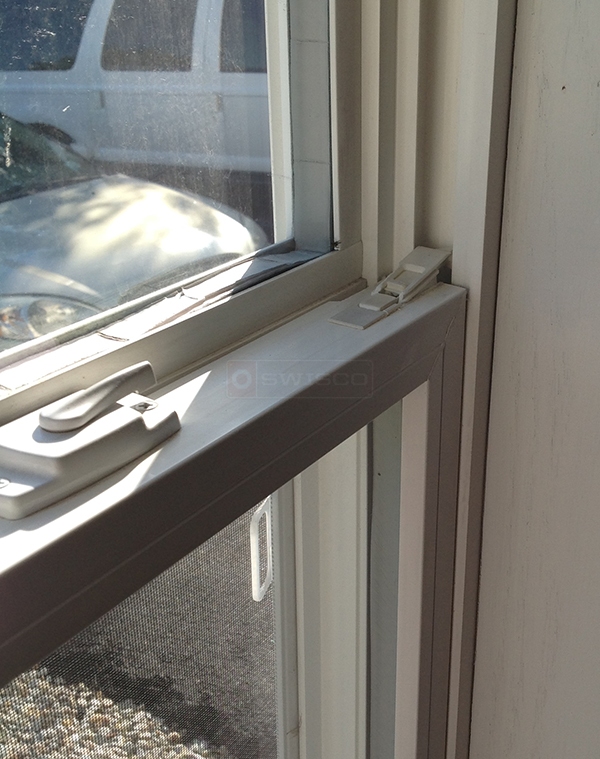

User submitted a photo of window hardware.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting. Yes, it definitely sounds like a problem with the window balances. However, I will need to see pictures of the balances themselves, preferably removed from the window, before we can offer a replacement. Let me know!
A home owner from Rock Tavern,NY says:
Here is a video I tried to take.Please let me know

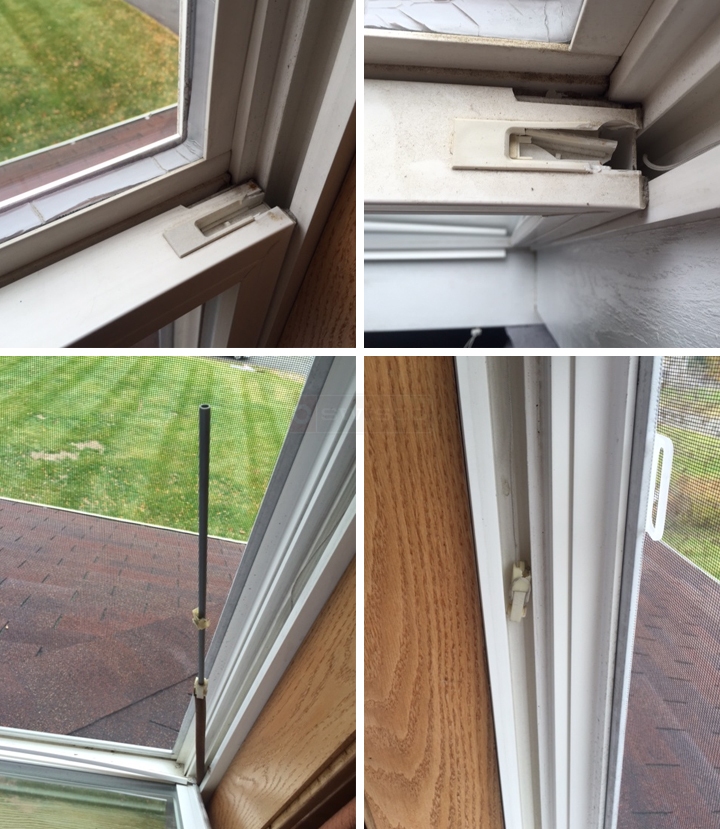

User submitted photos of window hardware.
Profile picture of Tom
Tom from SWISCO responded:
Well, I can see that your tilt latch is broken, though that has no relation to the balance spring. Is this the only problem, or is the tilt latch broken in addition to the balance?

In either event, I would need to see a picture of an undamaged version of this tilt latch, preferably from the other side. I will also still need a clear picture of the balance, since I do not see it in this new photo. Thanks!
A home owner from Rock Tavern says:
Here are the pictures you requested.

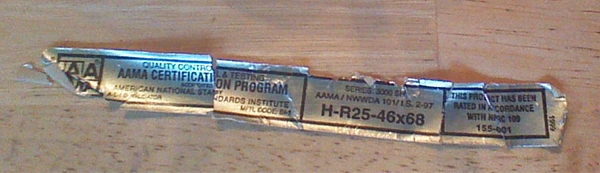

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
Thank you. Your top tilt latch might be our 26-244. Carefully compare it to your own to confirm. You may want to compare an undamaged version, if you have one.

I can't get a good view of your balance system, but it looks like it could be our Series 850 balance. You will need to remove the balance in order to confirm. See our video below for help.
A contractor from New Jersey says:
I have been Contacted by the homeowner to fix the windows in this post, your company has been in contact with the homeowner to identify some of the necessary parts Involved in the repair. The following balance was removed from the window. Please advise as to the proper replacement balance.

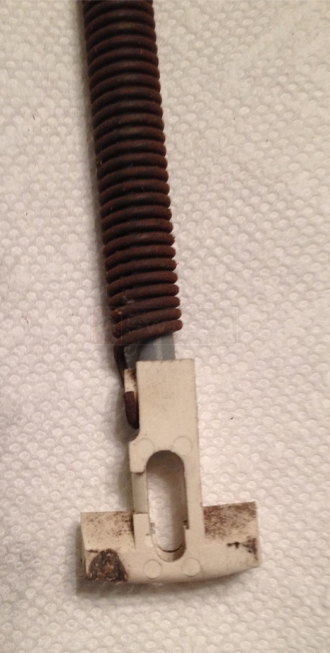

User submitted photo of their window hardware.
Profile picture of Paul
Paul from SWISCO responded:
Thank you! Looks like I was right, our Series 850 appears to be the best match.
