Window locks hardware

A home owner from new jersey says:
Please review the attached photos of the window balance and locks. Could you please let me know what I am in need of? Thank you

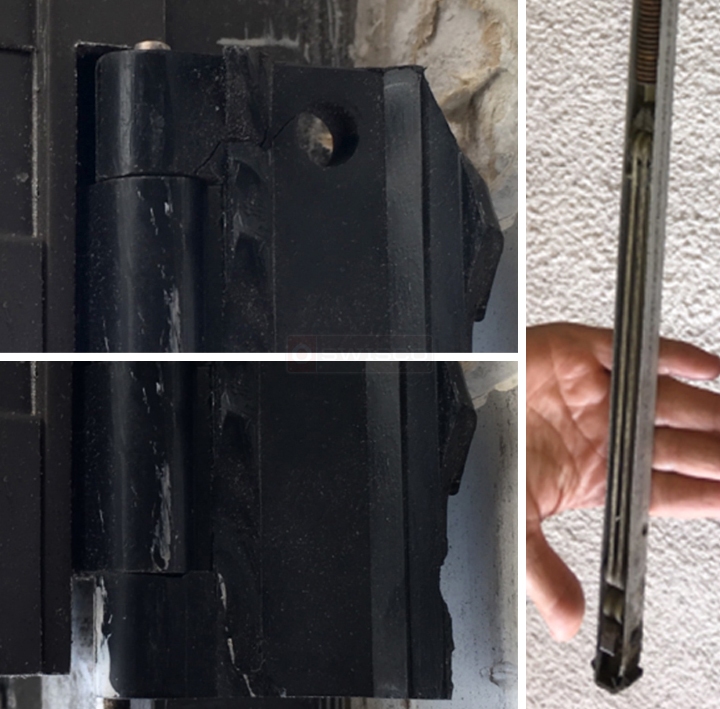

User submitted image of their window hardware.
Profile picture of Tom
Tom from SWISCO responded:
Your pictures are unclear, so I'm not sure exactly what it is you have. It looks like that's a hinge. Could it be something like our 15-058? Carefully look it over and see what you think.

If so, then the balance that works with this window is fairly complex. I have a lot of homework for you.

First, these balances are asymmetrical. What this means is that the balance on the left side of the window won't be the same as the balance on the right side of the window. Not only should they both have different stamps, but one of the balances will be missing the bottom nylon attachment. It will only have the top attachment. The balance on the other side will of course have both the top and bottom attachments. The nylon attachments in question are our 19-008 top and 15-025 bottom.

What I need you to do is look at each balance and tell me which balance has what stamp, and which one has both the 19-008 top and 15-025 bottom, and which one just has the 19-008 top. I also need to know how many of each you need, since these have to be custom made.
