Window pivot

A home owner from Aurora, CO says:
March 18, 2017
This original window pivot says 530C on it. I bought a swisco 15-015 as a replacement, it is very similar and would work except the thickness of the pivot hole is shallower, and my tilt window falls out of it when fully mounted. The original sticks out of the mount a bit compared to the 15-015, which is flush. The original part is approximately 0.582" in depth. Length 2.225". Width 1.25". The hole measures 0.24" tall and 0.354" wide. Which swisco window pivot is the proper replacement?

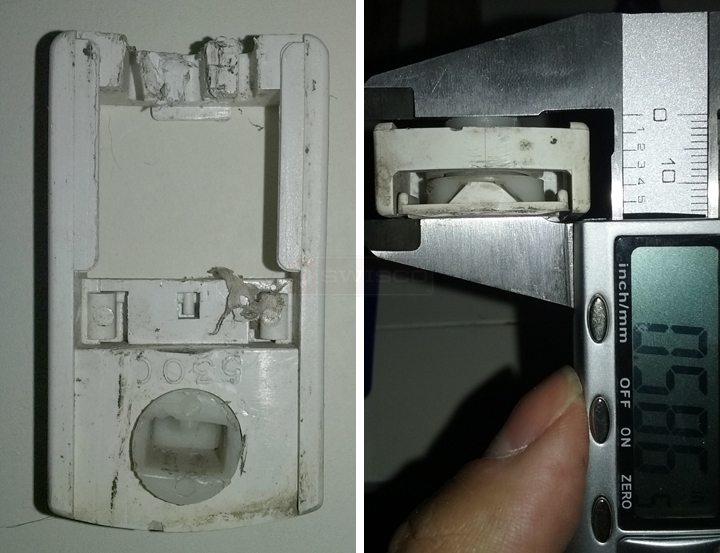

User submitted photos of a pivot shoe.
Profile picture of Tom
Tom from SWISCO responded:
March 24, 2017
Start by looking at our 15-046 pivot shoe. Yours is discontinued, but other customers have reported that the 15-046 worked well as a replacement.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-015
$1.55
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
