A home owner from USA says:
Hi,
We recently moved into a 2007 Skyline doublewide mobile home. The window locks in the attached picture are frequently breaking as well as the face mount keepers. The face mount keepers are 1 1/2" wide. The locks are 2 1/4" installation hole centers. We have locks that are both right locks and left lock mechanisms.

Thanks for your assistance with this.
Sincerely,
Candy

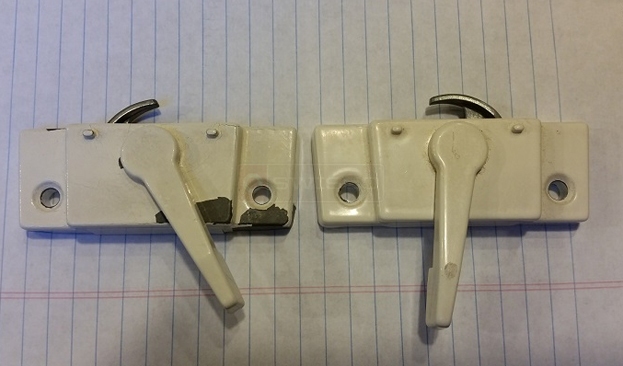

User submitted image of their window hardware.
Profile picture of Paul
Paul from SWISCO responded:
I would start by looking at our 90-274 window lock set, which matches your hole spacing. We do not have a left and right hand version of this, unfortunately. They are only made one way. Take a look to see if these will work on your window.
A quick learner says:
The 90-274 look fine however my keepers are a flat square piece. Would I be able to install a keeper that's different from the originals?
Profile picture of Tom
Tom from SWISCO responded:
If your keepers are still in good condition, you should be able to re-use them. The 90-274 kit comes with a keeper, but if yours is surface mounted like you describe then you should stick with that.
