Window sash guide for aluminum double pane windows

A quick learner from 92705 says:
July 7, 2017
Many on the sash balance did not have any markings. I included a sticker that was on the window related to inspection.

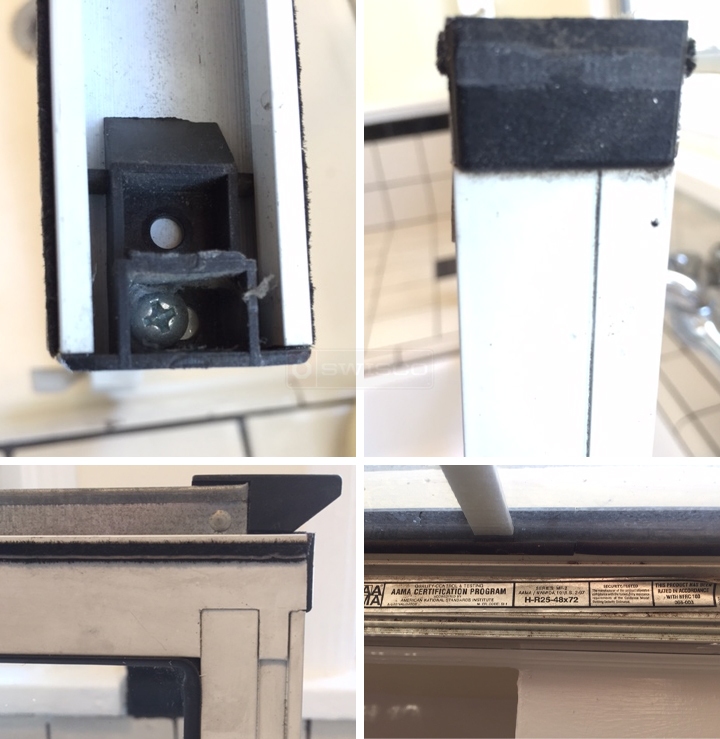

User submitted photos of window hardware.

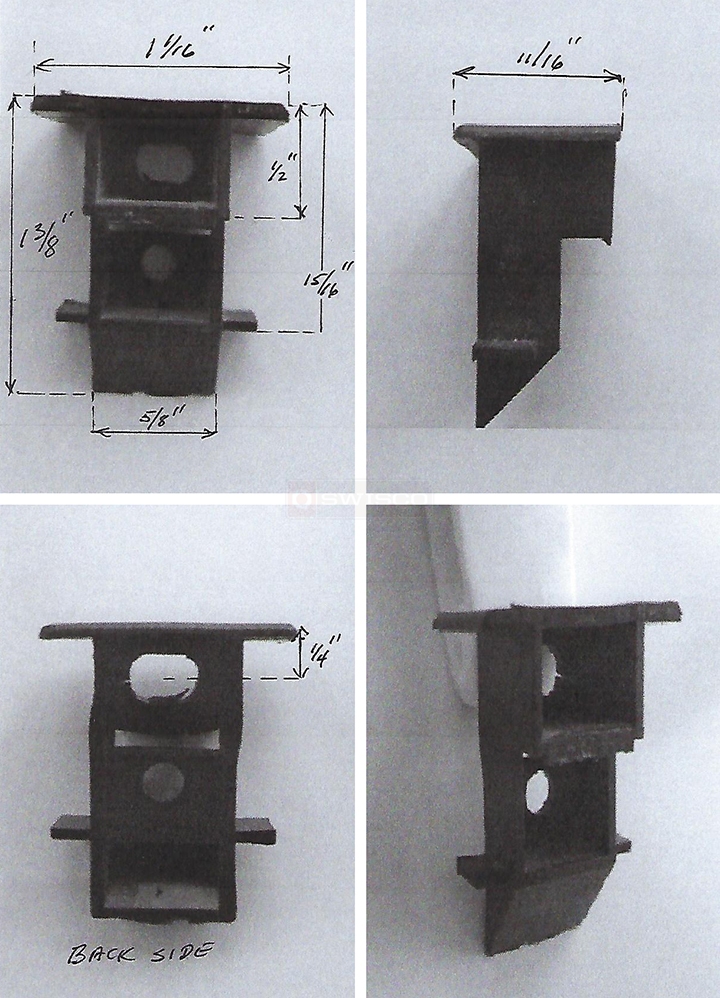

User submitted photos of a top sash guide.
Profile picture of Paul
Paul from SWISCO responded:
July 12, 2017
It's hard to say. Check the width of the bottom side aligners. If they are 15/16", I recommend our 18-185 top sash guide.
A quick learner from 92705 says:
July 14, 2017

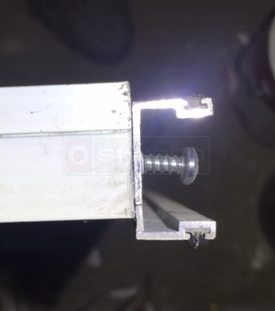

The window has a channel which is 13/16 at the narrow point. The fins on the guide are 31/32" wide and fit in the wider part of the channel. Probably a 3/4" wide guide with the correct size top would work but I could not find one on your site.
Window sash guide for aluminum double pane windows
Profile picture of Paul
Paul from SWISCO responded:
July 18, 2017
Ah, I see! With this new information in mind, I think our 18-138 top sash guide might work for you sash. It has those same aligners at the bottom of the guide for the balance channel. See what you think.
Top Sash Guide, 3/4"
Top Sash Guide, 3/4"
18-138
$3.95
