Window shoe

A quick learner from Columbus says:
January 16, 2017
1 1/4" x 2" X11"" at thickest and 5/8" at channel
A quick learner from Columbus says:
January 16, 2017
1 1/4" x 2" x 5/8" deep in channel but deeper where window pin sets into
A quick learner from Columbus says:
January 16, 2017
1 1/4" x 2" x 5/8" deep in channel but deeper where window pin sets into 1" thick there

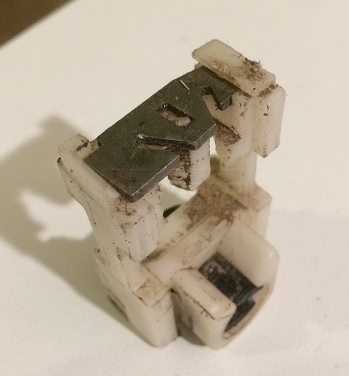

pivot shoe
Profile picture of Paul
Paul from SWISCO responded:
January 19, 2017
I believe you have an older version of our 15-048 pivot lock shoe. Please compare it to your own and see what you think.
Pivot Shoe
Pivot Shoe
15-048
$2.79
