Wings for Channel Balance 2730?

A home owner from San Jose, CA says:
Hi Swisco,

I'm looking to replace both channel balances for my bedroom window. Everything I've read suggests I need a 15-004 channel balance shoe (1 & 3/32") and a 28" channel balance (my current one says BSI 2730 on it). That particular shoe has wings. However, my current shoe does not have wings. Do I need a non-winged version, or will that not matter? The entire assembly that I think I'd need looks like your S385-28, apart from the wings.

Lastly, I need two new top sash guides. I found a tiny little number on it: 200-823. I've included pictures of all my existing stuff. Thanks in advance!

Mike

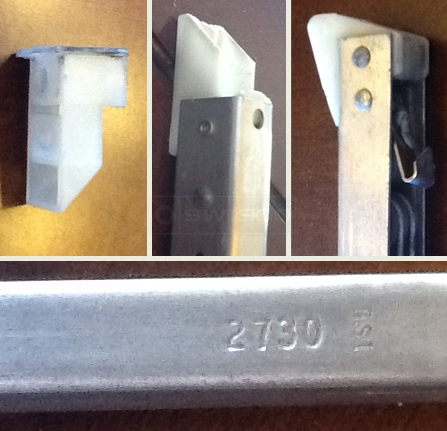

A customer submitted photo of channel balance attachments.
Profile picture of Tom
Tom from SWISCO responded:
Good afternoon, Mike. Thanks for posting!

I think your bottom shoe would be closer to our 15-001, since it does not have wings and because it measures over 1". It's possible that it has just been worn down a bit from use. Since your top attachment is also non-winged, I think you should take a look at our S390-28 and consider it as a possible replacement.

As for the top sash guide, I can't be sure what it is without knowing its dimensions. Please look through our Top Sash Guide category on our site and see if you can match it up to anything. If not, let me know what the measurements for your own top sash guide is and we can work from there!
A home owner from San Jose, CA says:
Thanks for the help Tom! I think that nailed it. The channel balance you suggested is a perfect match, and I was able to figure out which top sash to get (18-009). Thanks again.

Mike
Profile picture of Tom
Tom from SWISCO responded:
Great news, Mike! I'm glad I was able to help. Please let me know if you have any questions in the future!
