Would like to add key lock to my patio door

A home owner from USA says:
I have a sliding glass door to my patio that I would like to install a key lock into. I have looked at the local hardware store and could not find anything to fit. Below is a drawing of the holes that the current handle uses. The top and bottom holes are for the screws that hold the indoor and outdoor handles. The yellow hole is the one the lock lever operates in. The second hole from the TOP appears to be if the door opening from the right side of the opening and was flipped over. Does your company have anything that would fit this. One that I saw on your website that is close is
Profile picture of Tom
Tom from SWISCO responded:
Thank you for posting! I'm afraid your illustration didn't go through. Can you try uploading it to the thread again? Make sure that your images are saved as .jpegs, that will be the easiest file format to upload. Can you also tell me the SWISCO product code of the handle set you think might work?
A handy person from Marlborough, MA says:
Here is the image. I believe the 82-306 model may work.

Let me know if this went through.

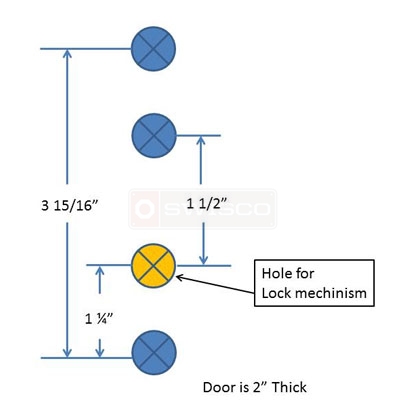

A customer submitted illustration of their patio door handle holes.
Profile picture of Tom
Tom from SWISCO responded:
Perfect! Judging by these dimensions, I think the 82-306 is a great place to start. Your door does appear a little thicker than normal, though. Just keep that in mind during installation. You may need to reuse the original screws.
