Wright left split arm casement operator

A home owner from Billings MT says:
#07907 on l
#7701 on base

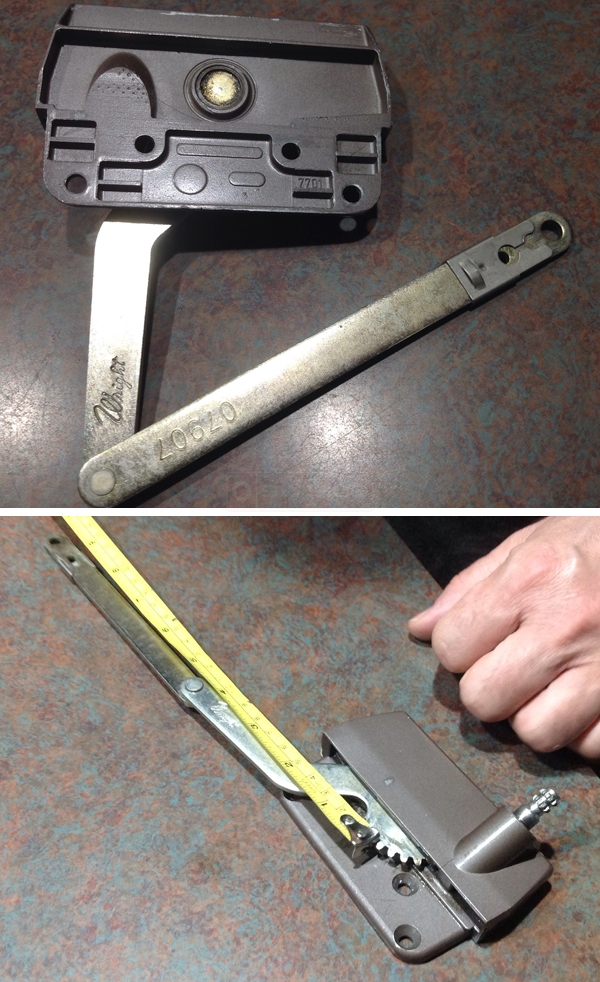

User submitted photos of a window operator.
Profile picture of Tom
Tom from SWISCO responded:
Thank you for posting. The closest matches we've been able to find are our 39-318 and 39-317. However, your link arm appears much longer than ours. Can you confirm? If it is, what is its size compared to these two parts?
A home owner from Billings MT says:
Does this help?

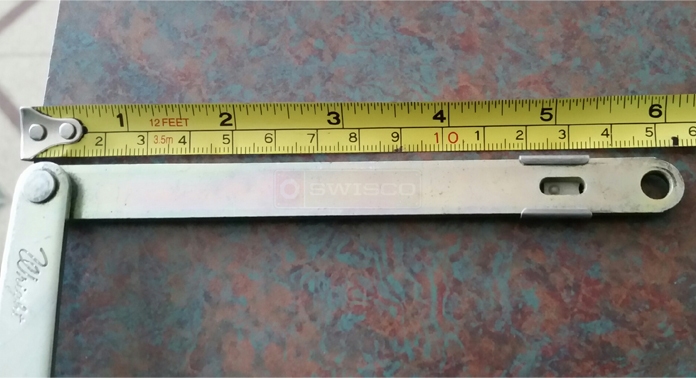

User submitted photo of their window hardware.
Profile picture of Dave
Dave from SWISCO responded:
Thanks again for your patience. I'm afraid this exact operator is no longer available. The most frustrating part is that Wright products made over 8 different versions of this operator then they discontinued the casement hardware line. I would suggest using the 39-318 operator that top suggested and then swapping out the new link arm with the old one from your current operator. You will need to drill out or grind off the rivet to remove the link arm from the operators, then reattach the arm with our 62-014 rivet. Another solution would be to try and move the sash bracket on the window to the proper place so the window operates properly.
